DRIVE TRAIN, GEARCASE, CARRIER, INTL COMP (BUILT 10/16/08 AND AFTER)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH (BUILT 10/01/08 AND AFTER)
by
DRIVE TRAIN, MAIN GEARCASE INTL COMP 1 (BUILT 10/16/08 AND AFTER)
DRIVE TRAIN, GEARCASE, CARRIER, INTL COMP (BUILT 10/16/08 AND AFTER)
1
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
18
19
20
13
13
13
13
13
13
25
26
1
SCR-5/16-18X1.125(026HM117-1)
3234618
9999999
Not Available
2
SCR-5/16-18X.75 FL(026HM103-4)
3234511
9999999
Not Available
3
BRKT-DIFF MNT REAR;RH
5250016
9999999
Not Available
4
BRKT-DIFF MNT REAR;LH
5250329
9999999
Not Available
5
REAR DIFFERENTIAL MOUNT
1332450
9999999
Not Available
6
NUT-FLANGE(026HN107)
3234500
9999999
Not Available
7
ASM-DRV HOUSING;RR(026KH111X)
3234860
9999999
Not Available
8
PLUG-FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
9
TAPERED ROLLER BEARING
3514435
9999999
Not Available
10
TAPERED BEARING; RLR
3514657
9999999
Not Available
11
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
12
SHIM KIT; SPOOL
3234504
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
AXLE SPOOL(026DC110)
3234505
9999999
Not Available
15
O-RING HOUSING HALVES
5412338
9999999
Not Available
16
ASM-COVER REAR(026KX101X)
3234861
9999999
Not Available
17
SCR-5/16-18X2.750(026HM103-3)
3234501
9999999
Not Available
18
OIL SHAFT SEAL
3610159
$73,49 Unit Price incl. VAT
19
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
20
BOLT-HEX 41221
7518173
9999999
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
OIL PINION SEAL
3610102
$57,74 Unit Price incl. VAT
26
DOWEL BUSHING
3234503
9999999
Not Available

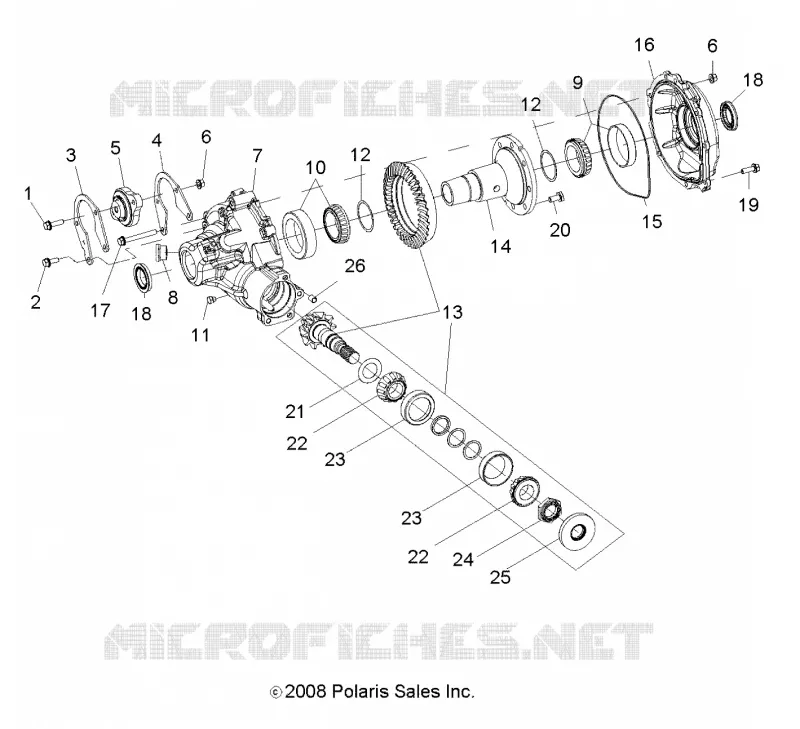

Find the detailed DRIVE TRAIN, GEARCASE, CARRIER, INTL COMP (BUILT 10/16/08 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
