Engine displacement
800
2
Year
2009
3
Trim
RZR 800 EFI ALL OPTIONS - R09VH76
4
Parts Catalog
COOLING SYSTEM
5

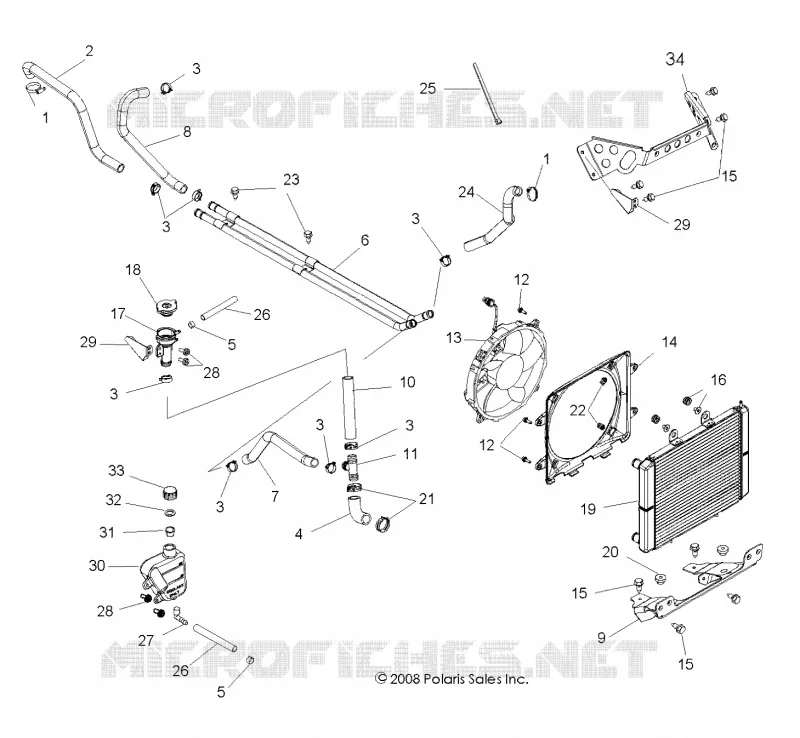

Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH (BUILT 9/30/08 AND BEFORE)
by
ELECTRICAL, INSTRUMENTS CONTROLS
COOLING SYSTEM
1
1
2
3
3
3
3
3
3
3
4
5
5
6
7
8
9
10
11
11
12
12
12
12
13
13
14
14
15
15
15
16
17
18
19
19
20
21
22
22
23
24
25
26
26
27
28
28
29
29
29
29
30
31
32
33
34
34
1
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
2
ENGINE OUTLET HOSE; REAR
5413148
9999999
Not Available
3
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
4
HOSE; 1"I.D.
5410958
9999999
Not Available
5
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
6
ASM-COOLANT TUBE
1240544
9999999
Not Available
7
HOSE-LWR RADIATOR LONG
5413372
5414204
$83,99 Unit Price incl. VAT
8
HOSE-ENG INLETREAR
5413147
9999999
Not Available
9
WELD-LOWER RAD MNT;MATTEBLK
1015842458
Not Available
10
HOSE-RADIATOR 1.0X7.50
5413371
9999999
Not Available
11
CONNECTOR-TEE 1 1 1 BARBED
7052373
$19,94 Unit Price incl. VAT
11
CONNECTOR-T 1 IN BARBED
7052397
7052373
$19,94 Unit Price incl. VAT
12
SCR-M6-1.00X20 W/WASHER(10)
7547220
9999999
Not Available
12
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
13
FAN ASSEMBLY; 11 INCHES; ATV
2410413
$493,49 Unit Price incl. VAT
13
KIT-FAN
2204192
2204347
$342,29 Unit Price incl. VAT
14
FAN SHROUD
5437845
9999999
Not Available
14
SHROUD-FAN
5434853
9999999
Not Available
15
SCREW
7517386
$2,09 Unit Price incl. VAT
16
GROMMET AND INSERT ASSEMBLY
5411975
9999999
Not Available
17
NECK FILLER REMOTE COOLANT FITTING
5435196
9999999
Not Available
18
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
19
CORE RADIATOR ASSEMBLY
1240444
1241480
$871,49 Unit Price incl. VAT
19
ASM-RADIATOR CORE
1240319
1241480
$871,49 Unit Price incl. VAT
20
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
21
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
22
CLIP- U M6.0X1.0
7547197
9999999
Not Available
22
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
23
SCREW
7515179
$4,19 Unit Price incl. VAT
24
HOSE-UPPER; RADIATOR
5413067
5414201
$83,99 Unit Price incl. VAT
25
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
26
FUEL LINE; 1/4 ID
84500031525
Not Available
27
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
28
SCREW
7512084
$2,09 Unit Price incl. VAT
29
BRKT-FILLER NECK
5250993
5253450
$52,49 Unit Price incl. VAT
29
FILLER NECK BRACKET
5253450
$52,49 Unit Price incl. VAT
30
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
31
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
32
GASKET
5810279
$4,19 Unit Price incl. VAT
33
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
34
BRKT-UPPER MNT;RADIATOR;BLK
5250497067
Not Available
34
Bracket Mount Radiator Upper Black [Built 5/15/09 and After]
5253686067
Not Available
