1
Engine displacement
autre
2
Year
1997
3
Trim
MAGNUM 6X6 - W97AE42A
4
Parts Catalog

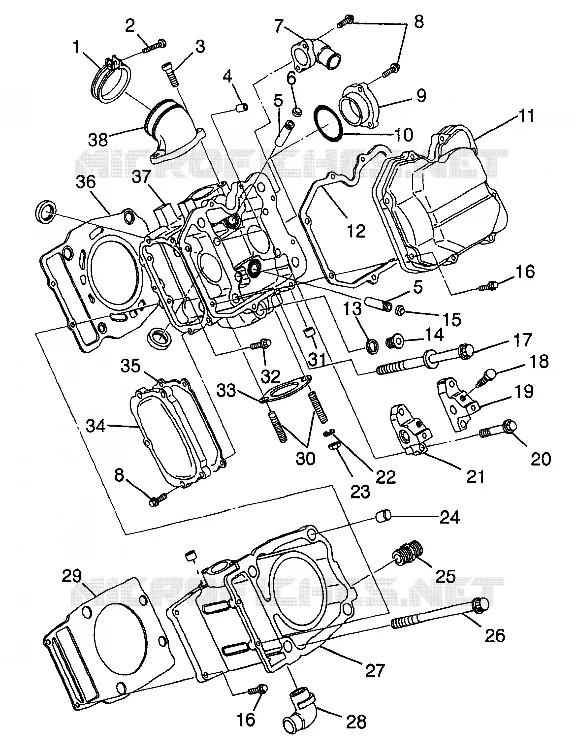

CYLINDER MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D009)
5
Parts Diagram
Parts Catalog
CRANKCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D008)
by
CRANKSHAFT AND PISTON MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D010)
CYLINDER MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D009)
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
20
21
21
22
22
23
24
25
26
27
28
29
1
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
2
PAN HEAD SCREW
3081497
9999999
Not Available
3
SOCKET HEAD BOLT
3081330
9999999
Not Available
4
STRAIGHT PIN
3084857
9999999
Not Available
5
GUIDE VALVE
3084994
9999999
Not Available
6
INTAKE VALVE SEAL
3084858
9999999
Not Available
7
ADAPTER (WATER OUT)
3085072
9999999
Not Available
8
FLANGE BOLT
3084877
9999999
Not Available
9
CAMSHAFT ADAPTER
3084866
9999999
Not Available
10
O-RING
3084867
9999999
Not Available
11
ROCKER COVER
3085073
9999999
Not Available
12
ROCKER COVER GASKET
3085074
9999999
Not Available
13
GASKET
3084861
9999999
Not Available
14
PLUG
3084860
9999999
Not Available
15
EXHAUST VALVE SEAL
3084859
9999999
Not Available
16
FLANGE BOLT
3084874
9999999
Not Available
17
BOLT
3084875
9999999
Not Available
18
BOLT
3084880
9999999
Not Available
19
VALVE ROCKER SHAFT SUPPORT
3084864
9999999
Not Available
20
BOLT
3084876
9999999
Not Available
21
ROCKER SHAFT SUPPORT VALVE; MAG
3084863
9999999
Not Available
22
LOCK WASHER
3080530
9999999
Not Available
23
NUT
3080285
9999999
Not Available
24
PIN STRAIGHT
3084838
9999999
Not Available
25
UNION-OIL PUMP
3084849
9999999
Not Available
26
BOLT FLANGE
3084873
9999999
Not Available
27
CYLINDER (Incl. 28 31)
3085537
Not Available
28
PIPE-2 ELBOW
3084130
9999999
Not Available
29
GASKET; CYLINDER
3085370
9999999
Not Available
30
STUD
3085326
9999999
Not Available
31
PLUG; BLIND
3084862
9999999
Not Available
32
BOLT; FLANGE
3084215
9999999
Not Available
33
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
34
COVER; CAMSHAFT
3084868
9999999
Not Available
35
GASKET-COVER CAM
3084869
9999999
Not Available
36
GASKET HEAD
3085337
9999999
Not Available
37
HEAD CYLINDER ASSEMBLY
3085527
9999999
Not Available
38
ADAPTER
3084879
9999999
Not Available

Find the detailed CYLINDER MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
