1
Engine displacement
autre
2
Year
1997
3
Trim
MAGNUM 6X6 - W97AE42A
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
1
2
2
2
3
4
4
5
6
6
7
8
9
9
9
10
10
11
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
25
26
27
28
29
18
13
32
33
34
35
36
36
13
13
13
40
13
42
13
1
1
2
2
2
3
4
4
5
6
6
7
8
9
9
9
10
10
11
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
25
26
27
28
29
18
13
32
33
34
35
36
36
13
13
13
40
13
42
13
1
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
5
MOUNT ENG.TOP BLK.
5240328067
Not Available
6
NUT LOCK
7542403
9999999
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
FUEL LINE; 600 CM
8450040600
Not Available
10
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
15
BRKT CARB.MT.
5240609067
Not Available
16
WASHER
7552605
9999999
Not Available
17
HEX NUT
7542105
$7,34 Unit Price incl. VAT
18
Gasket
_______
Not Available
19
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
20
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
21
SCREW
7512490
$7,34 Unit Price incl. VAT
22
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
23
MOUNT R.ENG BLK
5241921067
Not Available
24
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
25
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
26
BUSHING
5430261
$13,64 Unit Price incl. VAT
27
WASHER
5210748
$7,34 Unit Price incl. VAT
28
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
29
BOLT
7512566
9999999
Not Available
30
Gasket
_______
Not Available
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
MOUNT ENG BLK
1040534067
Not Available
33
BOLT
7515321
9999999
Not Available
34
NUT FLEX-LOC
7542303
9999999
Not Available
35
MOUNT RUBBER FRONT
3110046
9999999
Not Available
36
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
38
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
40
MANIFOLD BLK
1260832029
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
ENG.(S.B.)EH42PLE-01 [No Longer Available] (See Footnote)
3085555
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

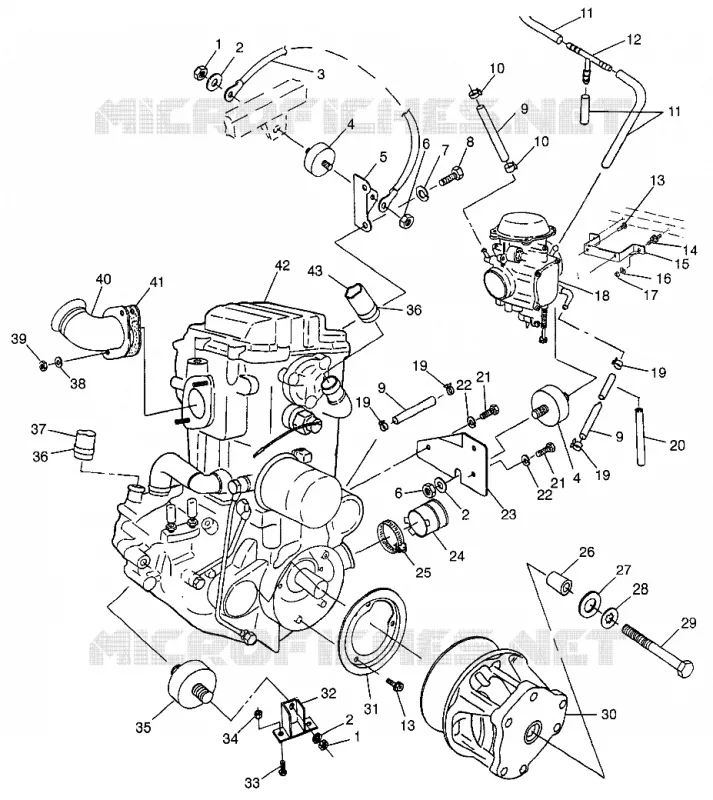

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
