1
Engine displacement
autre
2
Year
1997
3
Trim
MAGNUM 6X6 - W97AE42A
4
Parts Catalog
COOLING SYSTEM
5

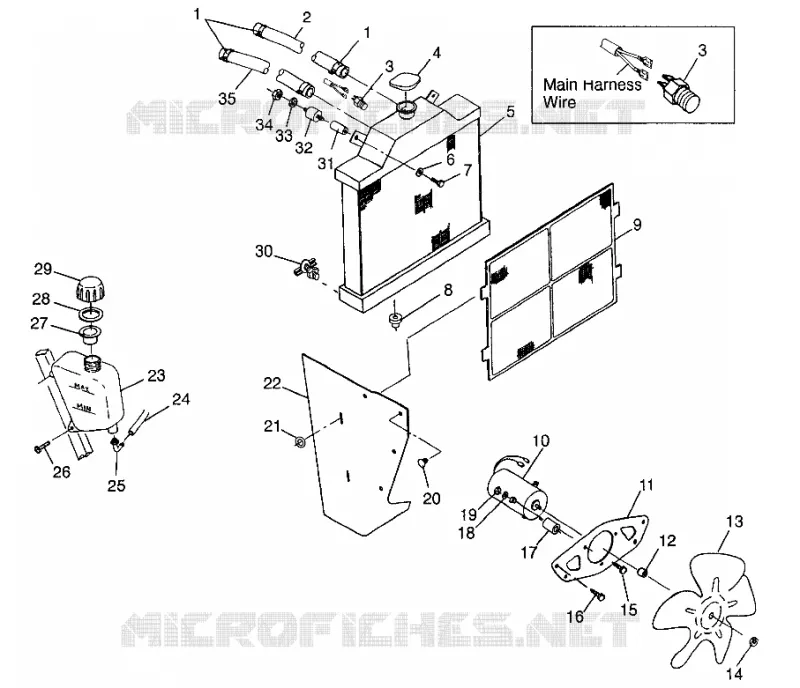

Parts Diagram
Parts Catalog
CABIN
by
ENGINE MOUNTING
COOLING SYSTEM
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
2
HOSE CHAFE-PROTECTED
5411108
9999999
Not Available
3
SWITCHTHERMALFANL/C
4110225
9999999
Not Available
4
CAP; RADIATOR
2511189
9999999
Not Available
5
RADIATOR"U"FLOW
1240015
9999999
Not Available
6
WASHER
7552605
9999999
Not Available
7
BOLT
7512113
$7,34 Unit Price incl. VAT
8
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
9
COVER RADIATOR W/MESH
5431610
Not Available
10
MOTOR FAN LQ W/CONNECTOR
4170011
9999999
Not Available
11
BRKT FAN MOUNT BLK
5241788067
Not Available
12
SPACER
5333457
9999999
Not Available
13
BLADE FAN
5240822
9999999
Not Available
14
NUT
7542154
9999999
Not Available
15
SCREW
7517221
9999999
Not Available
16
BOLT
7512232
$2,09 Unit Price incl. VAT
17
SPACER FAN BRKT.
5432294
9999999
Not Available
18
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
19
NUT (10)
7547004
$9,44 Unit Price incl. VAT
20
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
21
O-RING
5410607
9999999
Not Available
22
SHIELD LH RADIATOR SIDE
5431829
9999999
Not Available
22
SHIELD RH RADIATOR SIDE
5431830
9999999
Not Available
23
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
26
SCREW
7512084
$2,09 Unit Price incl. VAT
27
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
28
GASKET
5810279
$4,19 Unit Price incl. VAT
29
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
30
VALVE;DRAIN COCK
7052181
9999999
Not Available
31
MOUNT SPACER
5020572
9999999
Not Available
32
MOUNT; RUBBER
3110032
9999999
Not Available
33
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
34
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
35
HOSEWATER305 CM.
8450050305
Not Available

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
