1
Engine displacement
autre
2
Year
1997
3
Trim
MAGNUM 6X6 - W97AE42A
4
Parts Catalog

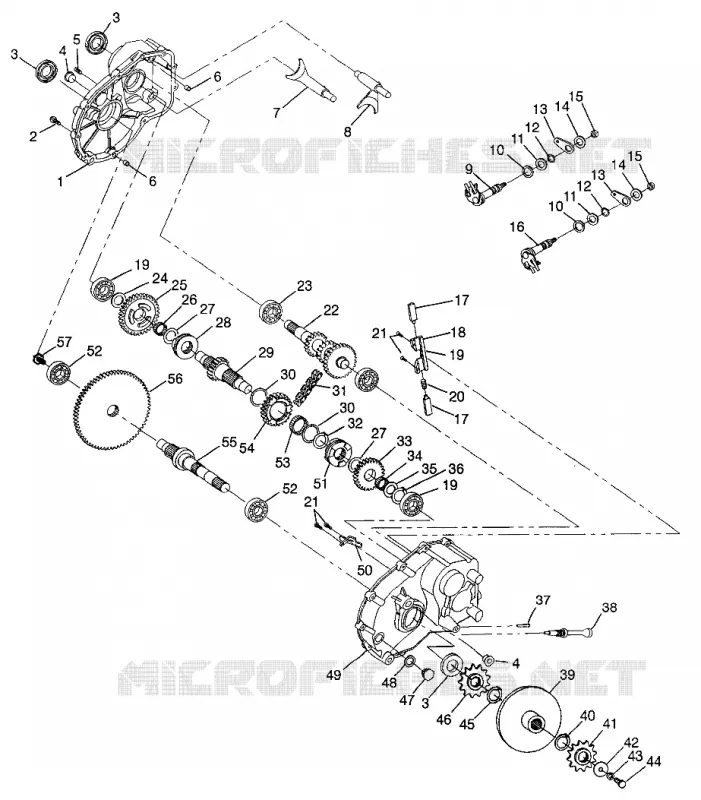

GEARCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D005)
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D004)
by
GEAR SELECTOR MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D007)
GEARCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D005)
-
1
2
3
3
3
3
4
4
5
6
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
39
39
39
39
39
47
48
49
50
51
52
52
53
54
55
56
57
-
1
2
3
3
3
3
4
4
5
6
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
39
39
39
39
39
47
48
49
50
51
52
52
53
54
55
56
57
-
GEARCASE ASMMAGNUM 4WDHCR
1341184
9990000
Not Available
1
CASE LH
3233002
9999999
Not Available
2
SCREW
3233026
9999999
Not Available
3
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
9999999
Not Available
5
STUD
3233025
9999999
Not Available
6
PIPE KNOCK
3233021
9999999
Not Available
7
SHIFTRAIL; LOW
3233022
9999999
Not Available
8
SHIFTRAIL HIGH/REV.
3233023
9999999
Not Available
9
SHAFT LOW SHIFT
3233151
9999999
Not Available
10
O-RING
3233044
9999999
Not Available
11
WASHER
3233040
9999999
Not Available
12
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
13
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
14
WASHER
3233054
9999999
Not Available
15
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
16
SHAFT HIGH/REV.SHIFT
3233152
9999999
Not Available
17
PIN
3233031
9999999
Not Available
18
BRACKET
3233030
9999999
Not Available
19
BEARING
3233018
$47,24 Unit Price incl. VAT
20
SPRING
3233032
9999999
Not Available
21
SCREW
3233033
9999999
Not Available
22
SHAFT INPUT 31T HCR
3233361
9999999
Not Available
23
BEARING
3233019
$54,59 Unit Price incl. VAT
24
WASHER
3233007
9999999
Not Available
25
GEAR 33T
3233125
9999999
Not Available
26
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
27
WASHER
3233010
9999999
Not Available
28
DOG ENGAGEMENT LOW
3233126
9999999
Not Available
29
SHAFTREV29THCR
3233362
9999999
Not Available
30
WASHER
3233012
9999999
Not Available
31
SILENT CHAIN
3233036
9999999
Not Available
32
RING RETAINING
3233029
9999999
Not Available
33
GEAR30THCR
3233359
9999999
Not Available
34
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
35
WASHER
3233176
$17,84 Unit Price incl. VAT
36
RING RETAINING
3233177
9999999
Not Available
37
VENT
3233037
9999999
Not Available
38
DIPSTICK
3233115
9999999
Not Available
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
40
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
PLUG
3233448
9999999
Not Available
48
WASHER
3233035
9999999
Not Available
49
CASE RH
3233003
9999999
Not Available
50
OIL DEFLECTOR
3233043
9999999
Not Available
51
DOG ENGAGEMENT HI/REV.
3233128
9999999
Not Available
52
BEARING
3233020
$80,84 Unit Price incl. VAT
53
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
54
SPROCKET 24T
3233127
9999999
Not Available
55
SHAFT OUTPUT
3233150
9999999
Not Available
56
GEAR O/P 100T HCR
3233360
9999999
Not Available
57
SPEEDO DRIVE BUSHING
5020741
9999999
Not Available

Find the detailed GEARCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
