1
Engine displacement
570
2
Year
2017
3
Trim
RZR 570 S
4
Parts Catalog
REAR BODYWORK RACK AND FENDERS
5
Parts Diagram
Parts Catalog
REAR BODYWORK BUMPER
by
SEAT ASM.
REAR BODYWORK RACK AND FENDERS
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
1
FENDER FLARE; REAR; RIGHT; GLOSS BLACK
5453035070
Not Available
2
FENDER FILTER PANEL; LEFT
5438941070
Not Available
3
REAR RACK; GLOSS BLACK
2636406070
Not Available
4
REMOVABLE MAINTENANCE BOX PANEL
5438906070
Not Available
5
FENDER FLARE; REAR; LEFT; GLOSS BLACK
5453034070
Not Available
6
SCREW
7517685
$3,14 Unit Price incl. VAT
7
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
8
DIVIDER PANEL; REAR; LEFT; GLOSS BLACK
5438336070
Not Available
9
DIVIDER PANEL; REAR; XP
5439327070
Not Available
10
PANEL DIVIDER; REAR; RIGHT; GLOSS BLACK
5438957070
Not Available
11
GROMMET
5412507
$12,59 Unit Price incl. VAT
12
SCREW
7512026
$2,09 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
SEAL-PANEL
5813751
9999999
Not Available
15
SHIELD-FOIL FRT PANEL
5814477
$73,49 Unit Price incl. VAT
16
SEATBELT BUCKLE COVER; REAR
5813553
$62,99 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
WASHER
7555919
$7,34 Unit Price incl. VAT
19
LATCH 1/4 TURN
7081500
$10,49 Unit Price incl. VAT
20
SHIELD-HEAT
5263157
9999999
Not Available

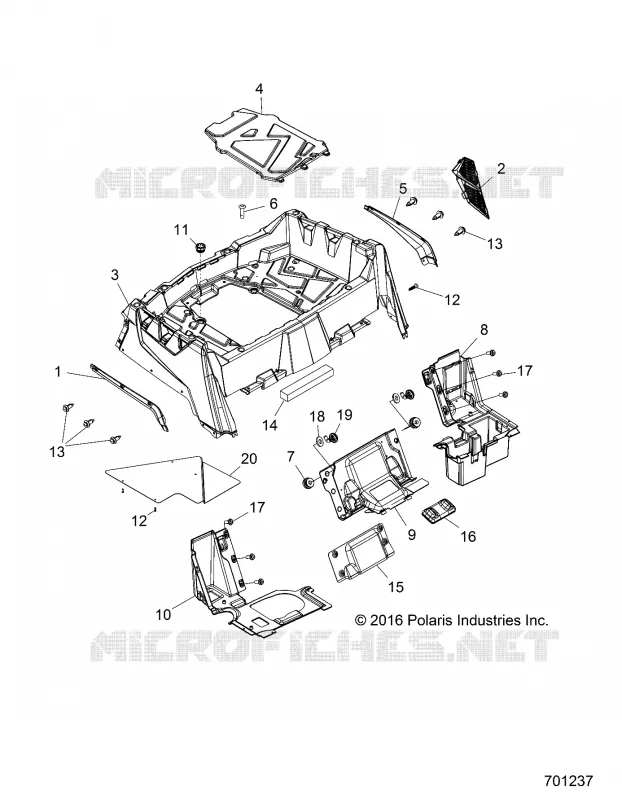

Find the detailed REAR BODYWORK RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
