Engine displacement
570
2
Year
2017
3
Trim
RZR 570 S
4
Parts Catalog
ELECTRICAL, WIRE HARNESS
5
Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION
by
ENGINE, STATOR COVER AND FLYWHEEL
ELECTRICAL, WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
1
CHASSIS HARNESS; RZR 570 S
2413474
9999999
Not Available
2
LABEL-FUSE BOX
7185045
9999999
Not Available
3
HARNESS CLIP EDGE
7081890
$19,94 Unit Price incl. VAT
4
CABLE TIE STRAP WITH EDGE CLIP
7081808
$10,49 Unit Price incl. VAT
5
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
6
GROMMET-65MM BLK
5813954
$13,64 Unit Price incl. VAT
7
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
8
CIRCUIT BREAKER; 20 AMP
4011372
$83,99 Unit Price incl. VAT
9
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
10
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
11
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT
12
FUSE-MINI BLADE;15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT

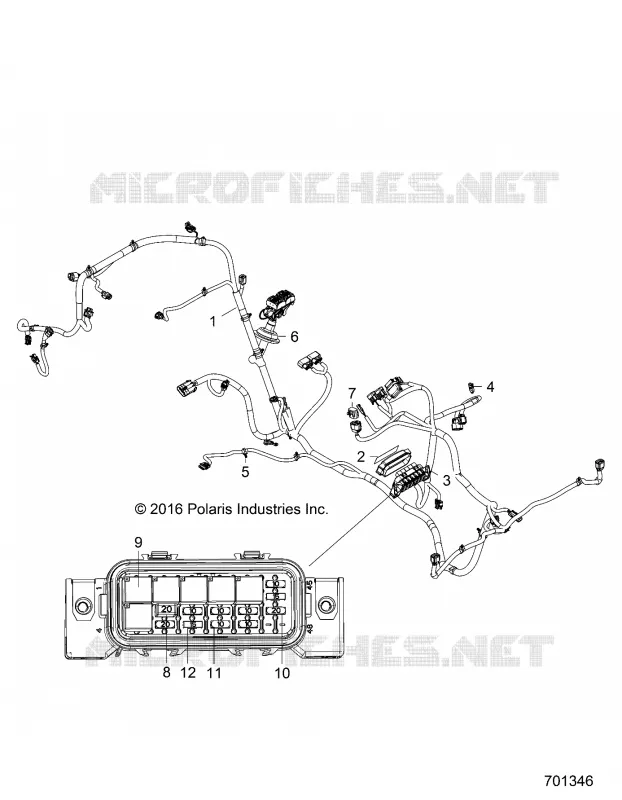

Find the detailed ELECTRICAL, WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
