1
Engine displacement
570
2
Year
2017
3
Trim
RZR 570 S
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATE
by
ELECTRICAL, DASH INSTRUMENTS AND CONTROLS
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
2
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
3
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
4
ASM-COVER CLUTCH INNER
2635045
2636954
$346,49 Unit Price incl. VAT
5
AIR INLET CLUTCH DUCT
5438891
$52,49 Unit Price incl. VAT
6
SCREW
7512098
$3,14 Unit Price incl. VAT
7
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
8
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
9
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
10
CLUTCH INTAKE HOSE
5414156
9999999
Not Available
11
DECAL-BELT CAUTION/CHECK
7177469
Not Available
12
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
12
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
13
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
14
CLAMP-VINYL COATED;1.00IN ID
7081854
$10,49 Unit Price incl. VAT
15
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT

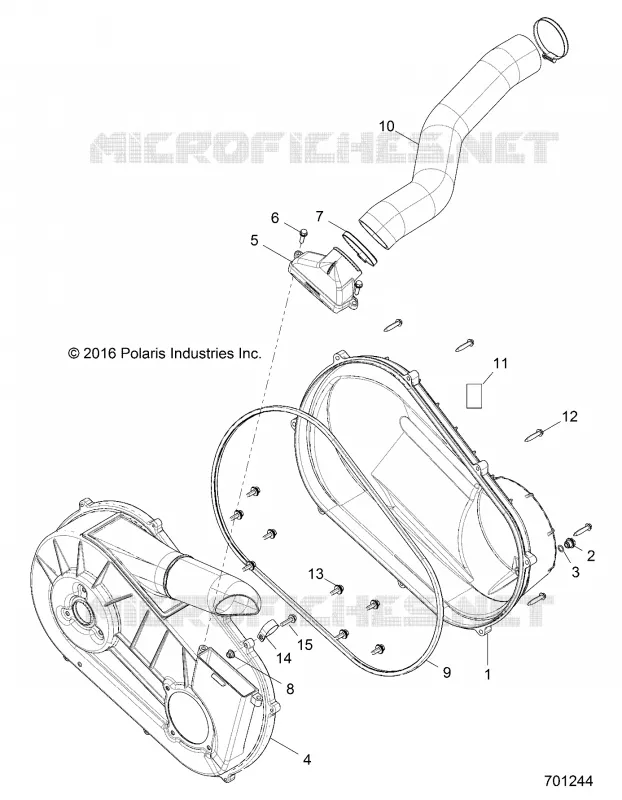

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
