1
Engine displacement
570
2
Year
2017
3
Trim
RZR 570 S
4
Parts Catalog
BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT MOUNTING AND BELTS
by
BRAKES, PEDAL
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
TANDEM MASTER CYLINDER ASSEMBLY
1911982
$246,74 Unit Price incl. VAT
2
TANDEM MASTER CYLINDER CAP KIT; 3/4 IN
2203455
$89,24 Unit Price incl. VAT
3
KIT-CLEVIS M/C TANDEM HB 3/4
2203456
$62,99 Unit Price incl. VAT
4
KIT-NUTS CLEVIS M/C TANDEM
2203457
$62,99 Unit Price incl. VAT
5
LINE-BRK LR 39.8 90F 70B 280 J
1912721
9999999
Not Available
6
LINE-BRK FR 38 45B 90SB 100 JF
1912790
9999999
Not Available
7
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
8
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
9
BRAKE LINE; REAR; RIGHT
1911449
$173,24 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
SWITCH
4014225
$167,99 Unit Price incl. VAT
13
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
14
BRAKE LINE RETAINER; 1 IN
5439192
$3,14 Unit Price incl. VAT
15
POP RIVET
7621323
$2,09 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
WIRE/TUMB CLAMP; .25
7081246
$2,09 Unit Price incl. VAT
19
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
20
CLIP
7670102
$4,19 Unit Price incl. VAT
21
LINE-BRAKE MASTER TO REAR
1911919
$152,24 Unit Price incl. VAT
22
LINE-BRK FL 27.5 20B 90SB 45JF
1912789
9999999
Not Available
23
SHIELD-MASTER CYL
5251507
$52,49 Unit Price incl. VAT
24
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
25
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT
26
SCREW
7517281
$13,64 Unit Price incl. VAT
27
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
28
SCR-10-24X1/2 PH/TX/TRIRD/SEMB
7518176
$9,44 Unit Price incl. VAT
29
RIVET
7621472
$2,09 Unit Price incl. VAT

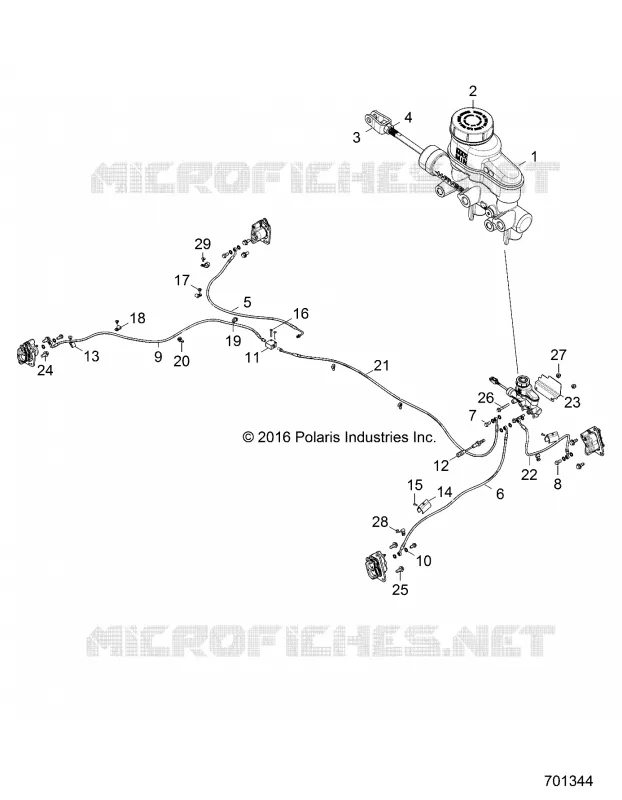

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
