CLUTCH COVER for POLARIS SPORTSMAN 500 HO - A09MH50AS/AX/AZ from 2009

CLUTCH COVER

1

CLUTCH COVER KIT; INNER

2201954

$257,24 Unit Price incl. VAT

2

ASM-COVER CLUTCH OUTER HV

2633262

2633926

$346,49 Unit Price incl. VAT

3

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

4

CLUTCH AIR INLET DUCT

5436958

9999999

Not Available

5

CLUTCH COVER SEAL; OUTER

5521738

5526450

$78,74 Unit Price incl. VAT

6

BOLT ASSEMBLY; WASHER

7517599

$10,49 Unit Price incl. VAT

7

O RING-.364X.504X.07

5410542

5411432

$9,44 Unit Price incl. VAT

8

DRAIN PLUG

5434264

$10,49 Unit Price incl. VAT

9

DUCT BOOT HI-FLOW

5412636

9999999

Not Available

10

NARROW BAND CLAMP; 70-90 MM

7081279

$5,76 Unit Price incl. VAT

11

CLUTCH OUTLET DUCT

5436952

9999999

Not Available

12

DECAL-AUTOMATIC TRANSMISSION

7172746

9999999

Not Available

13

DECAL-WARN CLUTCH COVER

7172563

Not Available

14

SCREW

7512094

$3,14 Unit Price incl. VAT

15

SCREW AND WASHER

3084205

9999999

Not Available

16

CLUTCH SEAL BRACKET

5242046

9999999

Not Available

17

ENGINE COVER CASE SEAL

5412637

9999999

Not Available

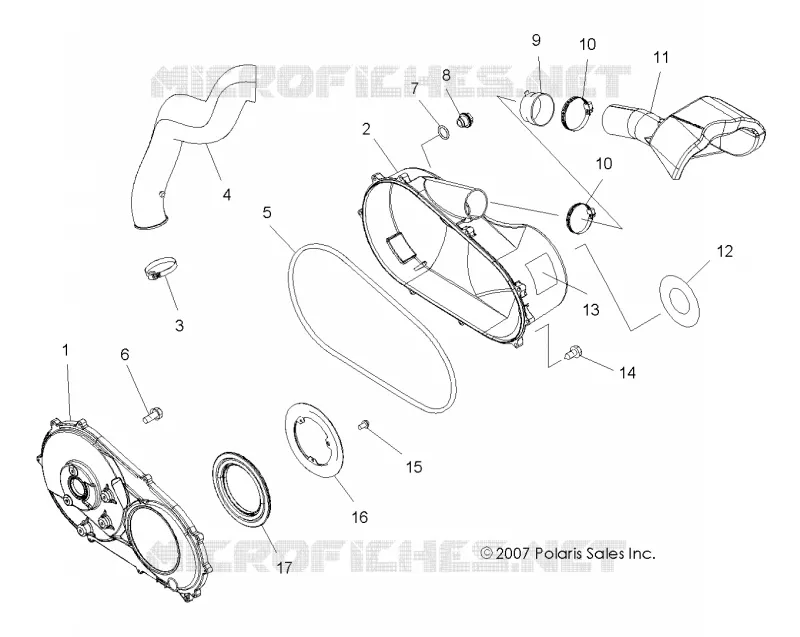

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
