Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 HO - A09MH50AS/AX/AZ
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
by
CLUTCH COVER
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT
2
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
3
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
4
AIRBOX COVER SEAL
5812829
5813949
$52,49 Unit Price incl. VAT
5
AIRBOX COVER
5432868
9999999
Not Available
6
CLIP
5242044
$17,84 Unit Price incl. VAT
7
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
8
SCREW
7517317
$6,29 Unit Price incl. VAT
9
AIR INLET DUCT
5436937
9999999
Not Available
10
SEAL FOAM
5811626
$57,74 Unit Price incl. VAT
11
AIR BOX
5433387
9999999
Not Available
12
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
13
LINE BREATHER 3/8 ID.
8450073600
Not Available
14
CLAMP-P STL 1 IN BDL DIA-B
7080913
9999999
Not Available
15
BREATHER HOSE FORMED 500 CC
5413104
9999999
Not Available
16
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
17
BREATHER FILTER IN LINE
2530029
9999999
Not Available
18
SCREW
7515179
$4,19 Unit Price incl. VAT
19
CARBURETOR BOOT
5412562
$89,24 Unit Price incl. VAT
20
SLEEVE-CARB INNER
5433847
$27,29 Unit Price incl. VAT
21
BREATHER-LINE-115 CMSLIT
5413003
9999999
Not Available
22
TRAP PLUG
5435299
9999999
Not Available
23
FUEL LINE
8450059150
Not Available
24
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
25
FOIL-AIRBOX 10.75 X 5.60
5813042
9999999
Not Available
26
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
27
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT

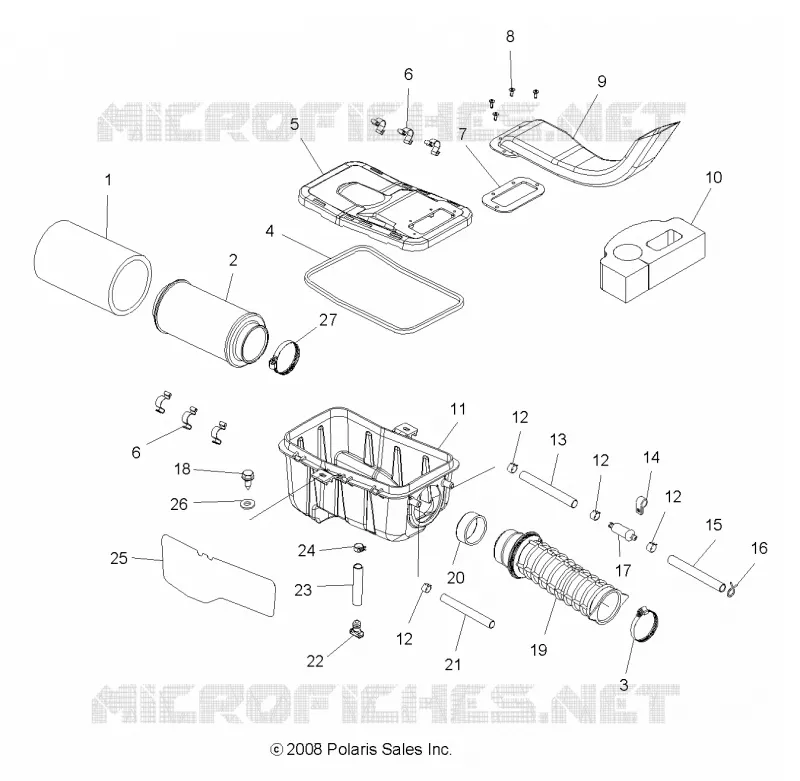

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
