CRANKCASE for POLARIS SPORTSMAN 500 HO - A09MH50AS/AX/AZ from 2009

REAR BRAKE CALIPER (BUILT 12/16/08 AND AFTER)

CYLINDER AND HEAD

CRANKCASE

1

CRANKCASE ASSEMBLY

3089240

9999999

Not Available

2

STARTER BUSHING

3083669

9999999

Not Available

3

KNOCK PIPE

3087266

9999999

Not Available

4

BALL BEARING

3080676

9999999

Not Available

5

PIN DOWEL

3084840

9999999

Not Available

6

SCREW AND WASHER

3084205

9999999

Not Available

7

OIL SEAL

3084839

9999999

Not Available

8

AIR BREATHER PIPE

3085525

9999999

Not Available

9

UNION

3087154

9999999

Not Available

10

UNION

3084842

9999999

Not Available

11

PLUG

3084845

9999999

Not Available

12

ALUMINUM GASKET

3089450

9999999

Not Available

13

SPRING ONE WAY VALVE

3084844

9999999

Not Available

14

ONEWAY VALVE

3086810

9999999

Not Available

15

BALL BEARING

3084834

9999999

Not Available

16

BALL BEARING

3084835

9999999

Not Available

17

BOLT FLANGE

3084841

9999999

Not Available

18

GASKET

3082956

9999999

Not Available

19

PLUG

3086749

9999999

Not Available

20

MECHANICAL SEAL

3084837

9999999

Not Available

21

OIL SEAL

3084836

9999999

Not Available

22

O-RING

3084847

9999999

Not Available

23

DOWEL PIN

3086838

9999999

Not Available

24

PIPE PULSE

3083798

7052145

$17,84 Unit Price incl. VAT

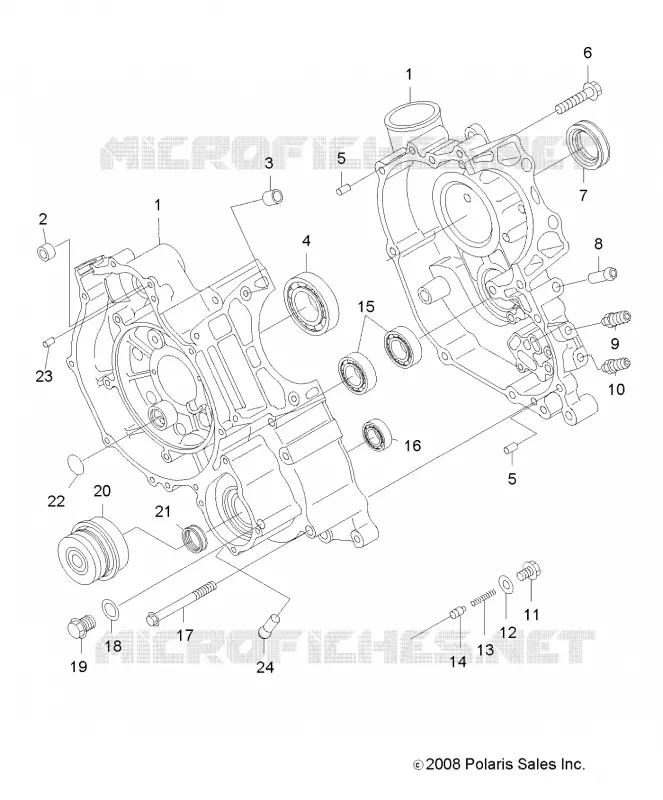

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
