FRONT BUMPER AND MOUNTING for POLARIS SPORTSMAN 500 HO - A09MH50AS/AX/AZ from 2009

DRIVE TRAIN, FRONT DRIVE SHAFT

CABIN SIDE PANELS

FRONT BUMPER AND MOUNTING

1

FRONT BUMPER ASSEMBLY; GLOSS BLACK

2633527070

Not Available

2

RIGHT SUPPORT RACK; MEDIUM GLOSS BLACK

1014592067

Not Available

2

SUPPORT RACK; LEFT; MEDIUM GLOSS BLACK

1014591067

Not Available

3

BOLT-5/16-18X1-3/4 HXFLNG GR5

7518341

$9,44 Unit Price incl. VAT

4

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

5

FRONT BRUSHGUARD UNDER FRAME; GS BLK

1017050067

Not Available

6

RADIATOR SHIELD; SIDE; LEFT

5434314

9999999

Not Available

6

RADIATOR SHIELD; RIGHT

5434315

9999999

Not Available

7

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

8

RUBBER GROMMET; MOUNT; 25 IN.

5412504

$7,34 Unit Price incl. VAT

9

RADIATOR COVER; MESH

5435046

9999999

Not Available

10

DECAL-REFLECTOR AMBER LH

7175490

9999999

Not Available

10

DECAL-REFLECTOR AMBER RH

7175491

9999999

Not Available

11

BRUSH GUARD GRILL; MEDIUM GLOSS BLACK

5247507067

Not Available

12

SCR-#8X1 PN-PH H/L-Y

7518046

9999999

Not Available

13

BUMPER PANEL; FRONT; GLOSS BLACK

5435357070

Not Available

14

SCR-5/16-18X3/4 HX/W-TAP/R-M

7518383

$7,34 Unit Price incl. VAT

15

BOLT-5/16-18X2.25 FLG TAP/R-M

7518382

9999999

Not Available

16

WASHER-.327X.875X.090 FL-M

7556341

$3,14 Unit Price incl. VAT

17

SCREW

7515399

9999999

Not Available

18

PLUG; FRAME

5810467

9999999

Not Available

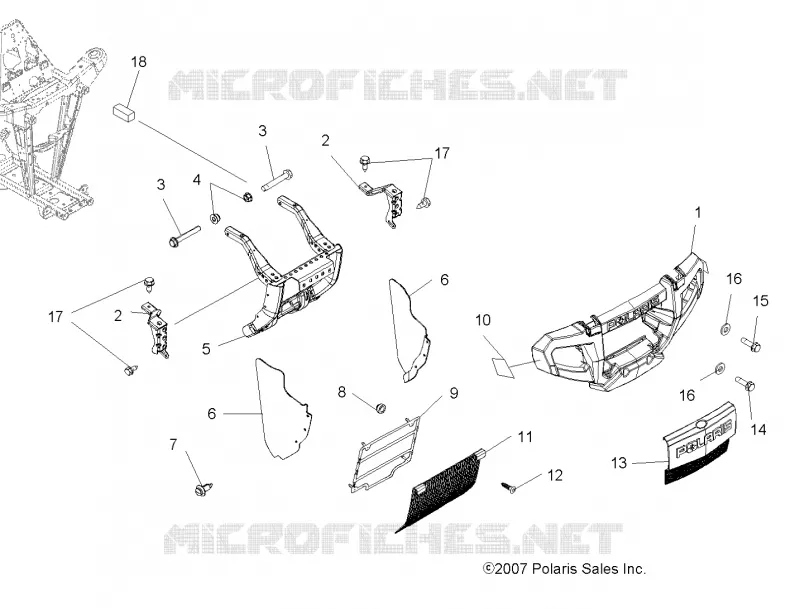

Find the detailed FRONT BUMPER AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
