Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO MD
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
ENGINE, AIR INTAKE SYSTEM
DRIVE TRAIN, SECONDARY CLUTCH
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ASM-DRIVEN CLUTCHBASIC
1323328
1323394
$839,99 Unit Price incl. VAT
3
DU BEARING; 22 X 25
3514902
$11,54 Unit Price incl. VAT
4
DU BEARING; 30 X 15
3514904
$11,54 Unit Price incl. VAT
5
BEARING; 30 X 20
3514919
$54,59 Unit Price incl. VAT
6
MACHINE DRIVEN COVER
5139820
$68,24 Unit Price incl. VAT
7
POST-CLUTCH DRIVEN
5140060
5140678
$125,99 Unit Price incl. VAT
8
SECONDARY CLUTCH SLIDER
5452016
$52,49 Unit Price incl. VAT
9
SCR-TXBH-M5X0.8X12 10.9ZPC P30
7520385
$10,49 Unit Price incl. VAT
10
SCR-TXFH-M6X1.0X20 8.8ZOD
7520219
$12,59 Unit Price incl. VAT
11
BUTTON HELIX
5452017
$31,49 Unit Price incl. VAT
12
DRIVEN SPRING; HD 140-200
7044369
$152,24 Unit Price incl. VAT
13
LIMITER CLUTCH SPACER
5452594
$17,84 Unit Price incl. VAT
14
ORV DRIVE BELT
3211186
$256,19 Unit Price incl. VAT
15
BRG THRUST; DU; 20
3514905
$20,99 Unit Price incl. VAT
16
THRUST WASHER
7556895
$52,49 Unit Price incl. VAT
17
EXTERNAL RETAINING RING
7710816
$3,14 Unit Price incl. VAT
18
HEX FLANGE SCREW 10 MM X 1.25 MM X 70 MM
7520408
$9,44 Unit Price incl. VAT
19
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
20
WASHER-DRIVEN SPLINE
7556942
$20,99 Unit Price incl. VAT

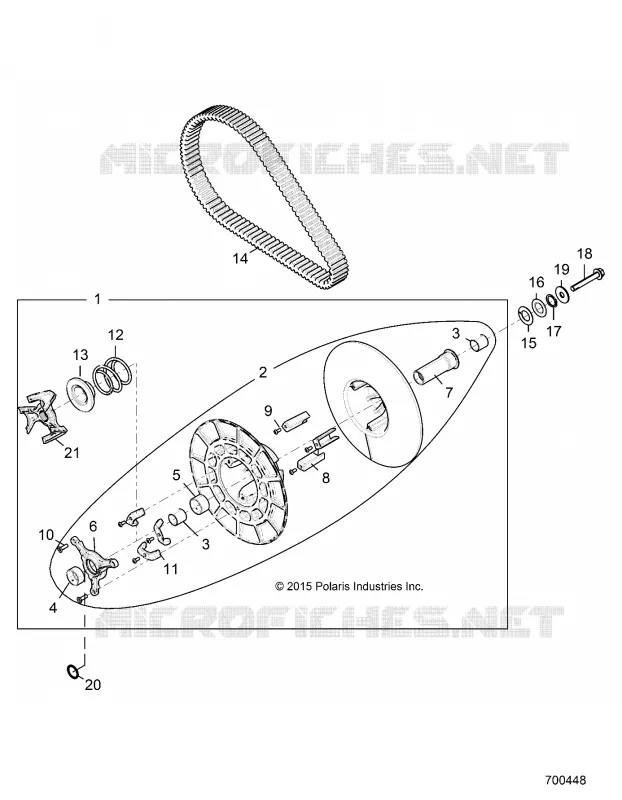

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
