1
Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO MD
4
Parts Catalog
WHEELS, FRONT
5
Parts Diagram
Parts Catalog
REAR STABILIZER BAR
by
WHEELS, REAR
WHEELS, FRONT
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
1
WHEEL; FRONT; 14 X 6; CAST; FLASH BLACK
1521963655
Not Available
2
RIM CAP; FLASH BLACK
1522216655
Not Available
3
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
4
TIRE FRT29X9 R14BIGHRNEM
5414964
$321,29 Unit Price incl. VAT
5
TAPERED NUT WHEEL M12 X 1.5
7547489
$17,84 Unit Price incl. VAT
6
SEALED BALL BEARING; 44 X 72 X 33.1
3514822
3514924
$73,49 Unit Price incl. VAT
7
KNUCKLE; FRONT; LEFT
5139867
9999999
Not Available
7
KNUCKLE; FRONT; RIGHT
5139868
9999999
Not Available
8
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
9
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
10
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
11
INTERNAL RETAINING RING
7710780
$17,84 Unit Price incl. VAT
12
REAR WHEEL HUB; MEDIUM GLOSS BLACK
5139265067
Not Available
13
BRAKE DISC
5260591
$173,24 Unit Price incl. VAT
14
WHEEL STUD
7519792
$10,49 Unit Price incl. VAT

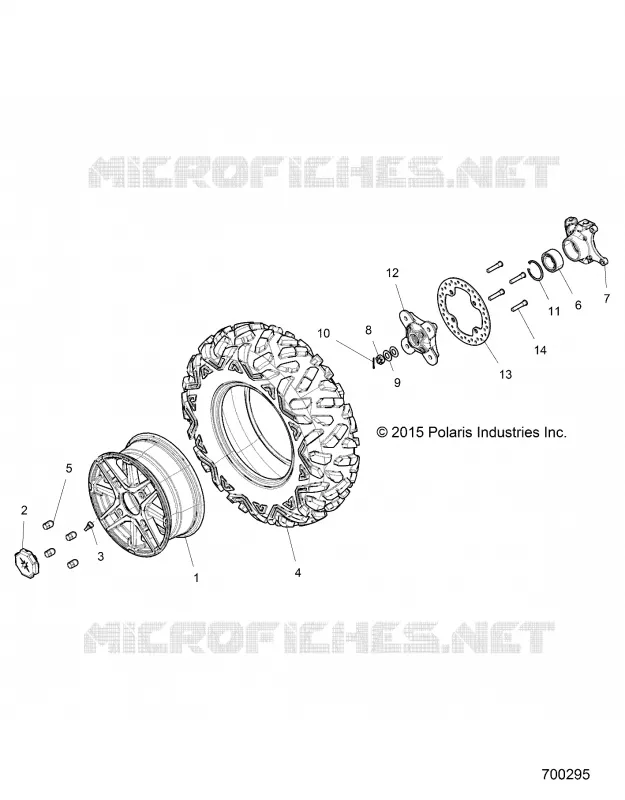

Find the detailed WHEELS, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
