1
Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO MD
4
Parts Catalog
COOLING, AUX. SYSTEM
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
CRANKCASE AND CRANKSHAFT
COOLING, AUX. SYSTEM
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
CORE RADIATOR ASSEMBLY
1240908
$808,49 Unit Price incl. VAT
2
GROMMET
7052028
$11,54 Unit Price incl. VAT
3
HOSE-OUT SURGE TANK TO LTR
5415445
$68,24 Unit Price incl. VAT
4
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
5
1/4SAEJ2002 EPDM HOSE 67CM
845012067
Not Available
6
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
7
WATERPUMP MOUNT BRACKET; BLACK
5260110329
Not Available
8
HOSE-PUMP INLET; 3/4 ;REAR
5415326
9999999
Not Available
9
ELECTRIC WATER PUMP ASSEMBLY
2413045
$671,99 Unit Price incl. VAT
10
HOSE-INTERCOOL INLET 3/4 RR
5415324
$89,24 Unit Price incl. VAT
11
WATER PUMP MOUNT BRACKET
5452166
$15,74 Unit Price incl. VAT
12
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
13
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
14
CLAMP-CONSTANT TENSION;16-27
7081415
$13,64 Unit Price incl. VAT
15
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
16
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
17
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
18
BRKT-COOLING TUBE
5260996
9999999
Not Available
19
COOLANT TUBE BRACKET; 3/4 IN
5451785
$9,44 Unit Price incl. VAT
20
HOSE-RADIATOR; 3/4 ;UPPER
5415320
9999999
Not Available
21
HOSE-RADIATOR; 3/4 ;LOWER
5415321
9999999
Not Available
22
INTERCOOL OUTLET HOSE; REAR; 3/4 IN
5415325
$99,74 Unit Price incl. VAT
23
COOLANT TUBE; 3/4 IN
5139654
9999999
Not Available
24
BRKT-COOLANT TUBE
5260107
9999999
Not Available

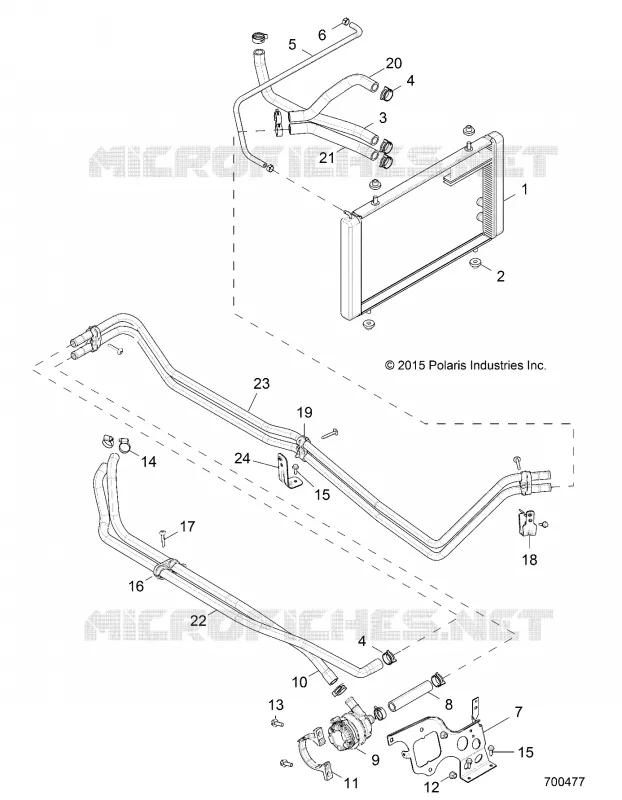

Find the detailed COOLING, AUX. SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
