Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO MD
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
REAR BUMPER
by
DRIVE TRAIN, GEAR SELECTOR
REAR RACK AND FENDERS
1
1
2
2
3
4
5
6
6
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
FENDER ASM REAR LFT MTE WHITE LIGHTNING
2635123662
Not Available
1
FENDER ASM REAR LEFT SUPER GRAPHITE
2635123509
Not Available
2
ASM-FNDR PNT RR CLIP RH S.GRPH
2635126509
Not Available
2
FENDER ASM REAR RHT MTE WHITE LIGHTNING
2635126662
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
REAR LEFT FENDER FLARE; GLOSS BLACK
5439762070
Not Available
5
REAR RIGHT FENDER FLARE; GLOSS BLACK
5439763070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
LEFT HAND FROG SKINZ BEZEL ASSEMBLY
2635658
$204,74 Unit Price incl. VAT
10
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
11
ASM-PANEL-BOX ACCESS EU
2636058
9999999
Not Available
12
INTAKE COVER WITH MESH
2635659
$204,74 Unit Price incl. VAT
13
REAR FASCIA ASM GLOSS BLK INCLUDES DECAL
2635073070
Not Available
14
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
15
BOX PLUNGER LATCH
5139009
$25,19 Unit Price incl. VAT
16
FASCIA BRACKET; REAR; BLACK
5257790329
Not Available
17
BOX-REAR LH BLK
5439784070
Not Available
18
BOX-REAR RH BLK
5450238070
Not Available
19
SHOCK PANEL RESERVOIR; LEFT; GLOSS BLACK
5452043070
Not Available
20
PANEL-SHOCK RESERVOIR RH BLK
5452044070
Not Available
21
KNOB 6 MM X 1.0 MM
7081619
$29,39 Unit Price incl. VAT
22
SCREW
7512026
$2,09 Unit Price incl. VAT
23
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
24
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
25
WASHER NYLON
7555916
$3,14 Unit Price incl. VAT
26
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
27
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
28
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT
29
PANEL-BOX ACCESS BLK
5450499070
Not Available

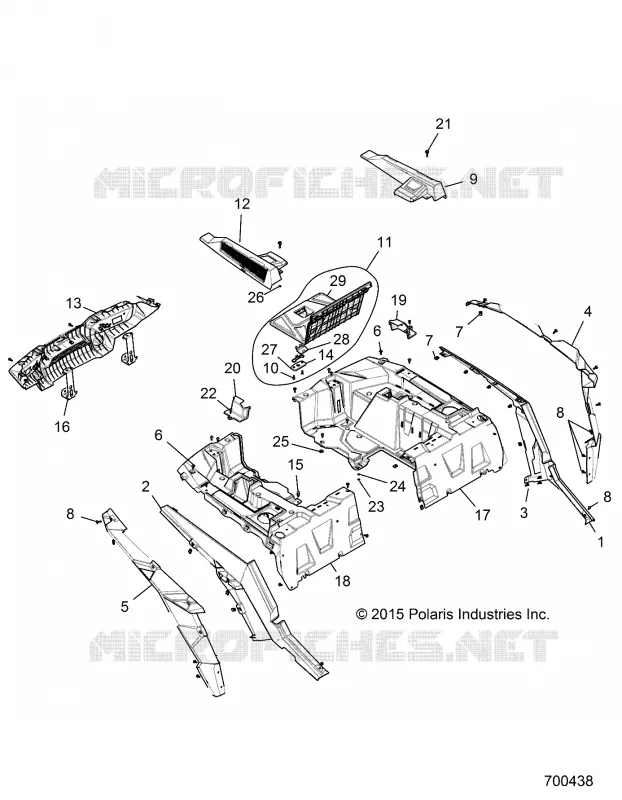

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
