1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 INTL - A09ZX85FS/CFS
4
Parts Catalog
WHEELS, FRONT AND HUB
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
WHEELS, REAR AND HUB
WHEELS, FRONT AND HUB
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
KNUCKLE-STEERING MACH LH
5136733
5143613
$272,99 Unit Price incl. VAT
1
ASM-STEERING KNUCKLE LH
1822945
9990000
Not Available
1
ASM-STEERING KNUCKLE RH
1822946
9990000
Not Available
1
KNUCKLE-STEERING MACH RH
5136734
5143614
$272,99 Unit Price incl. VAT
2
TAPERED WHEEL NUT; 10 MM X 1.25 MM
7547361
$4,19 Unit Price incl. VAT
3
HUB COVER
5438120
$89,24 Unit Price incl. VAT
4
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
5
RIM-FRONT 14X6 CAST LTWT
1521266
9999999
Not Available
6
CASTLE NUT; 18 MM X 1.5 MM X 13 MM
7547406
$9,44 Unit Price incl. VAT
7
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
8
COTTER PIN
7661402
$3,14 Unit Price incl. VAT
9
WHEEL STUD; M10 X 1.25 X 58
7518671
$3,14 Unit Price incl. VAT
10
WHEEL HUB
5135499
5136946
$178,49 Unit Price incl. VAT
11
BRAKE DISC
5250205
$141,74 Unit Price incl. VAT
12
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
13
BEARING-BALL SEALED 44X72X33.1
3514627
3514699
$73,49 Unit Price incl. VAT
14
TIRE-FRONT 26X8-14 ECON E-MARK
5413685
9999999
Not Available

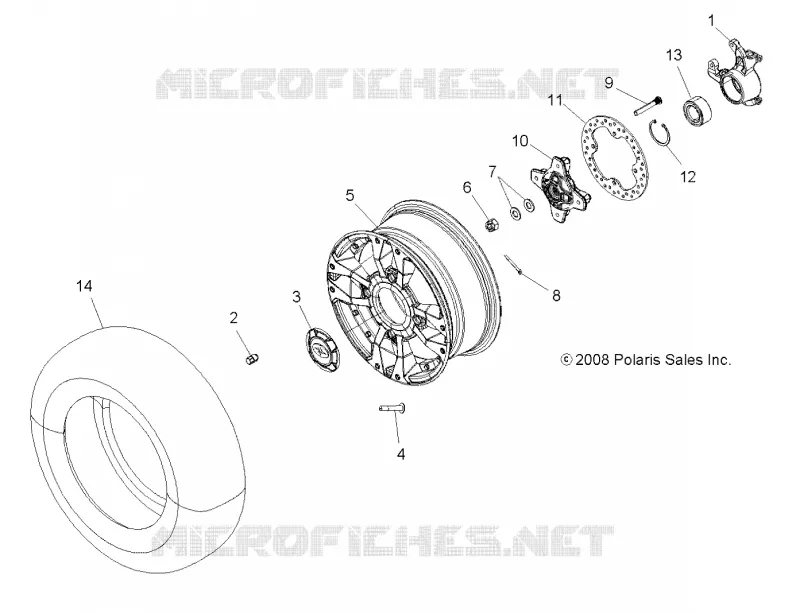

Find the detailed WHEELS, FRONT AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
