Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 INTL - A09ZX85FS/CFS
4
Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
HEADLIGHTS
WIRE HARNESS
1
1
1
1
1
1
1
2
3
4
5
6
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
18
18
1
EPS REPAIR RELAY KIT
2204853
$152,24 Unit Price incl. VAT
1
THROTTLE POSITION SENSOR HARNESS KIT
2878498
$220,49 Unit Price incl. VAT
1
HARNESS KIT; HANDLEBAR SWITCH
2877772
9999999
Not Available
1
HARNESS KIT; HANDLEBAR SWITCH
2877771
$257,24 Unit Price incl. VAT
1
HANDLEBAR SWITCH HARNESS KIT
2877773
$262,49 Unit Price incl. VAT
1
SINGLE POLE SINGLE THROW SEALED RELAY
4010725
$89,24 Unit Price incl. VAT
1
HARNESS-MAIN TWIN INT L
2411328
9999999
Not Available
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
RESISTOR MODULE HARNESS KIT
2204890
$257,24 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
9
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
10
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
11
BRKT-MOUNT FUSE BLOCK
5250452
9999999
Not Available
12
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
12
FUSIBLE KIT LINK; 2 MM; 6 MM; RING
2203632
9999999
Not Available
13
LABEL-FUSE BOX
7175636
9999999
Not Available
14
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
15
HARNESS-WINCH PREWIRE
2411186
9999999
Not Available
16
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT
17
MAIN FUSE; 30 AMP
2434015
$15,74 Unit Price incl. VAT
18
RELAY-SPST SEALED
4011407
$104,99 Unit Price incl. VAT
18
BOLT
7512113
$7,34 Unit Price incl. VAT
18
HEX NUT
7542105
$7,34 Unit Price incl. VAT

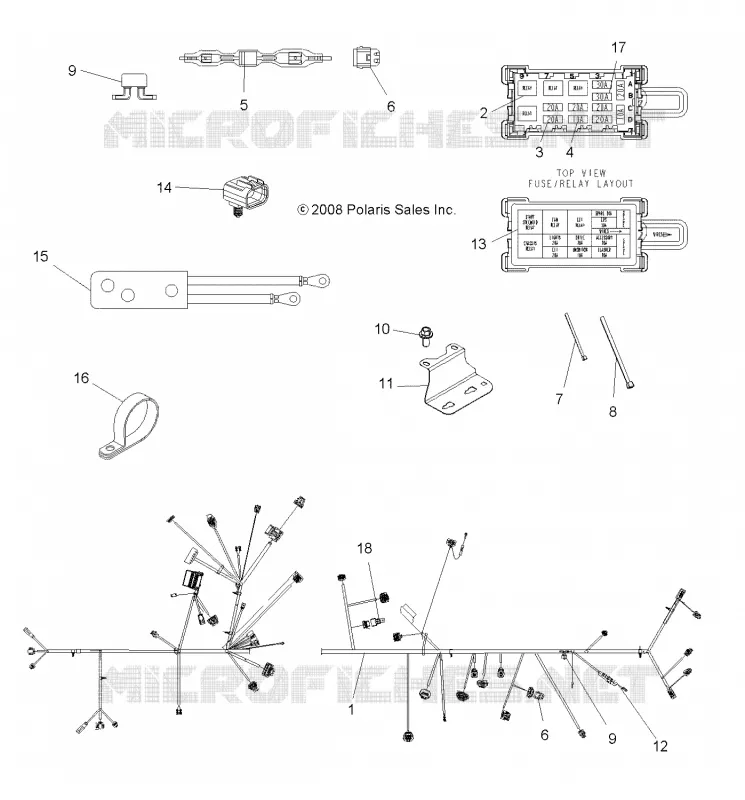

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
