1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 INTL - A09ZX85FS/CFS
4
Parts Catalog
THROTTLE BODY
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
ENGINE, VALVE COVER
THROTTLE BODY
1
2
3
4
4
5
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
11
1
ASM-IAFM TWIN DUAL PORT
1203698
9999999
Not Available
2
PLENUM ASSEMBLY; AIR INTAKE
1203737
9999999
Not Available
3
THROTTLE BODY ASSEMBLY
1203943
9999999
Not Available
4
CLIP-INJECTOR
7081444
3131725
$20,99 Unit Price incl. VAT
4
INJECTOR-190G/MIN SINGLE CONE
1203568
$188,99 Unit Price incl. VAT
5
CAP-DIAGNOTIC FUEL RAIL
5413286
9999999
Not Available
5
DUAL POINT FUEL RAIL ASSEMBLY; 2.7
2520563
9999999
Not Available
6
INTAKE PORT SEAL
5413283
9999999
Not Available
7
INTAKE SEAL THROTTLE BODY
5413386
9999999
Not Available
8
DUAL PORT INTAKE MANIFOLD
5437322
9999999
Not Available
9
SCR-M6X82MM SHCS
7518539
9999999
Not Available
10
SCR-FUELRAIL DUALPNT M6X20SHCS
7518541
9999999
Not Available
11
SCR-M6X25MM SHCS
7518844
9999999
Not Available
12
SCR-M6X1.065MM BTNHTXCS
7519019
$9,44 Unit Price incl. VAT
13
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
14
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
15
O-RING THROTTLE CAM COVER
5413599
$20,99 Unit Price incl. VAT
16
COVER-THROTTLE CAM
5252518
$89,24 Unit Price incl. VAT
17
SCREW
3130924
$3,14 Unit Price incl. VAT
18
HOSE-.302 ID;153 CM
8450116153
Not Available
19
Hose
845011420
Not Available
20
HOSE-.302 EPDM 27 CM
845011427
Not Available
21
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
22
SCR-M6X25MM SHCS
7518844
9999999
Not Available

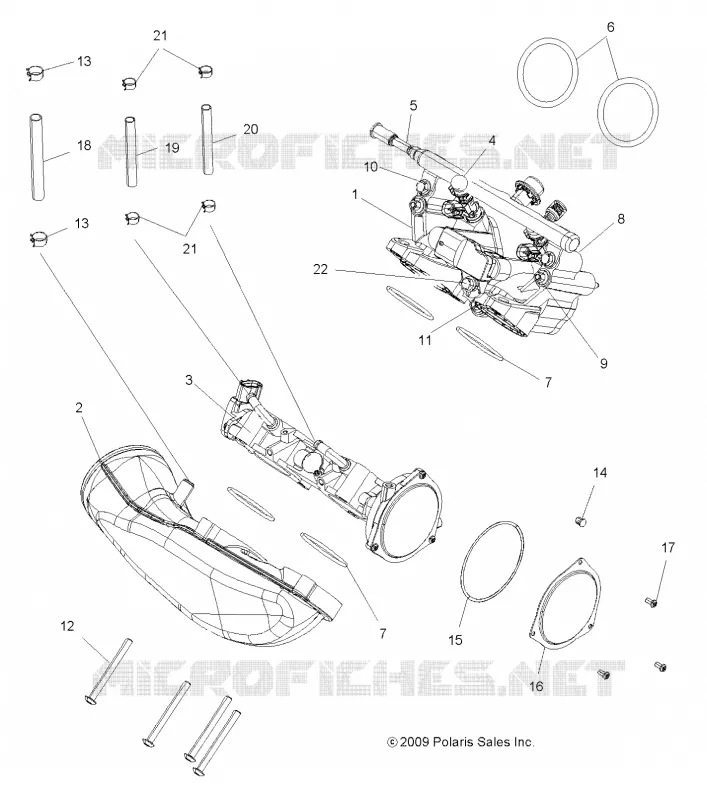

Find the detailed THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
