1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 INTL - A09ZX85FS/CFS
4
Parts Catalog
FRONT RACK
5
Parts Diagram
Parts Catalog
CABIN
by
FUEL TANK
FRONT RACK
1
2
3
4
5
6
7
8
9
10
11
12
1
14
15
16
17
18
19
20
20
1
2
3
4
5
6
7
8
9
10
1
FRONT RACK; GLOSS BLACK
5436865070
Not Available
2
ASM-L&R HANDLE/SHAFT
2633814
9999999
Not Available
3
SCREW
7511875
$9,44 Unit Price incl. VAT
4
NUT (10)
7547004
$9,44 Unit Price incl. VAT
5
WASHER-PLASTIC LNR ANCHOR
5437777
$7,34 Unit Price incl. VAT
6
BUSHING-PLASTIC LNR ANCHOR
5437776
9999999
Not Available
7
BUSHING-RUBBER LNR ANCHOR
5413598
9999999
Not Available
8
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT
9
NUT-5/16-24 NYLOK GR8 Y
7547217
$7,34 Unit Price incl. VAT
10
RACK MOUNT BRACKET; FRONT; UPPER
5251306
9999999
Not Available
11
MOUNT BRACKET; RACK; FRONT; LOWER
5251307
9999999
Not Available
12
SUPPORT RACK TUBE; FRONT; UPPER
5335352
$136,49 Unit Price incl. VAT
13
FRONT RACK; GLOSS BLACK
5436865070
Not Available
14
SPACER-RUB 12.5MMIDX19MMODX6MM
5813211
9999999
Not Available
15
SPACER-.437 DIA OD X .083 WALL
7556450
$6,29 Unit Price incl. VAT
16
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
17
SCR-M6X1X60 TX TR BLK
7518882
$7,34 Unit Price incl. VAT
18
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
19
SUPPORT RACK WELD FRONT
1015775
9999999
Not Available
20
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT

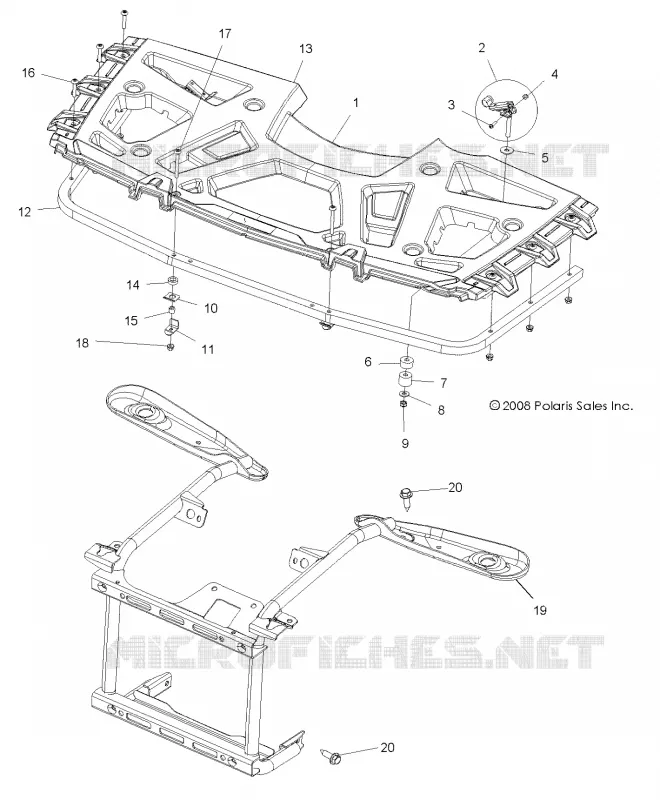

Find the detailed FRONT RACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
