1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESSES
by
SWITCHES AND SENSORS AND ECM
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
1
2
3
3
4
5
5
6
7
8
9
10
11
1
PLATE ASSEMBLY
3089959
9999999
Not Available
2
O-RING
3084978
9999999
Not Available
3
SPARK PLUG
3070172
$7,34 Unit Price incl. VAT
4
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
5
FLYWHEEL W/ RING GEAR
3089905
9999999
Not Available
6
RIVET
7661637
$2,09 Unit Price incl. VAT
7
COIL-IGNITION 500EFI
4011834
4015072
$204,74 Unit Price incl. VAT
8
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT
9
BRKT-COIL MNT
5249815
9999999
Not Available
10
WIRE SPARK PLUG; SINGLE; 365 MM
4011691
9999999
Not Available
11
OIL SEAL
3084973
9999999
Not Available

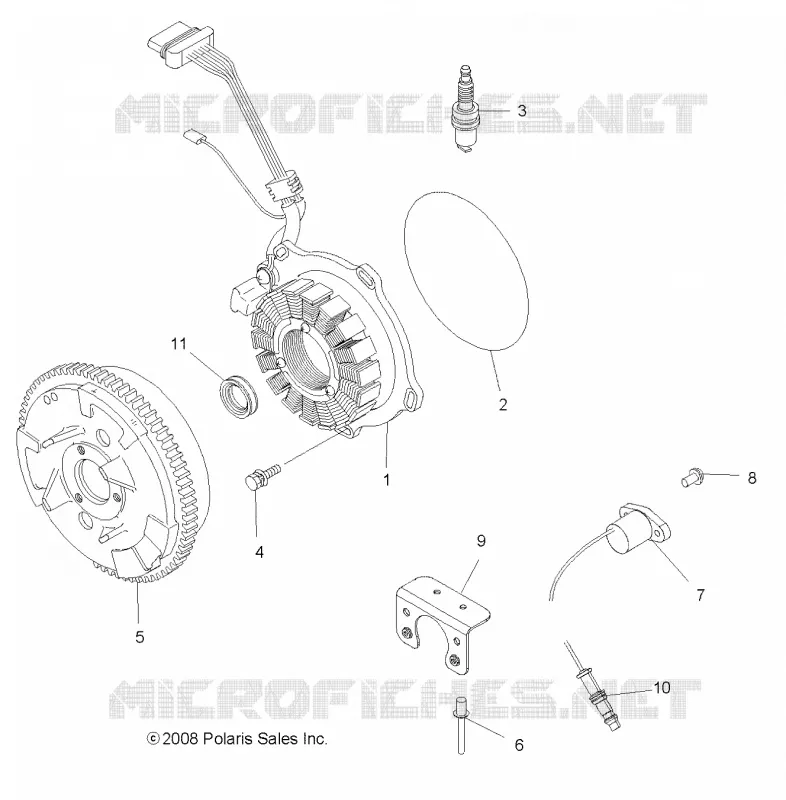

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
