1
CLUTCH INTAKE BOOT
5412487
9999999
Not Available
2
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
3
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
4
FRAME SUPPORT STRAP; MEDIUM GLOSS BLACK
5224658067
Not Available
5
NUT
7547108
$9,44 Unit Price incl. VAT
6
ISOLATOR-3/8-24M; 2/8-16M; 60DUR
3022072
9999999
Not Available
7
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
8
BRKT-TORQUE STOP PLTD
5245043
9999999
Not Available
9
ISOLATOR-3/8-24M/M 60DURO
3022071
3024012
$83,99 Unit Price incl. VAT
10
ENGINE MOUNT FRONT
5249873
9999999
Not Available
11
BOLT-3/8-24X23/4 HEX FLANGE 65
7518415
9999999
Not Available
12
MOUNT-ENGINE TOP PLTD
5241453
9999999
Not Available
13
FLANGE BOLT
3084874
9999999
Not Available
14
FRAME/ENGINE CABLE
4010895
9999999
Not Available
15
BOLT
7512315
$9,44 Unit Price incl. VAT
16
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT

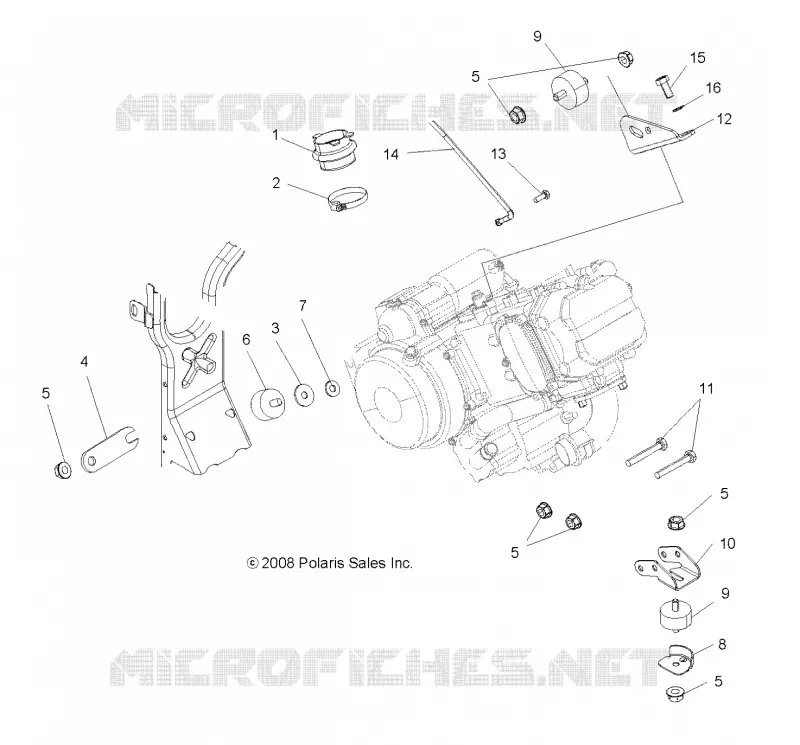

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
