Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
4
5
6
6
6
6
7
8
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
1
FAN AND MOTOR ASSEMBLY; 11 IN
2410383
$303,96 Unit Price incl. VAT
2
HEX HEAD BOLT; 6 MM
7517975
9999999
Not Available
3
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
4
SCREW
7512084
$2,09 Unit Price incl. VAT
5
FILLER NECK
5412402
$52,49 Unit Price incl. VAT
6
CLAMP-ROTO CLIP
7080826
9999999
Not Available
7
HOSE-FILLER NECK
5412405
9999999
Not Available
8
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
9
HOSE-LOWER ENGINE
5412404
9999999
Not Available
10
PLASTIC HOSEGUARD 18
5521550
9999999
Not Available
11
CLAMP HOSE 1.375 VNL ECOATED
7080908
9999999
Not Available
12
SCREW
7517386
$2,09 Unit Price incl. VAT
13
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
14
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
15
RADIATOR BRACKET; LOWER; GS BLK
5247047067
Not Available
16
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
17
SCREW
7515179
$4,19 Unit Price incl. VAT
18
RADIATOR-CROSSFLOW
1240305
1241477
$834,74 Unit Price incl. VAT
19
GROMMET AND INSERT ASSEMBLY
5411975
9999999
Not Available
20
FUEL LINE; 1/4 ID
84500031525
Not Available
21
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
22
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
23
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
24
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
25
GASKET
5810279
$4,19 Unit Price incl. VAT
26
HOSE-UPPER ENGINE
5412403
9999999
Not Available
27
RADIATOR BRACKET; UPPER; BLACK
5246754067
Not Available
28
GUARD-HOSE 22
5521750
9999999
Not Available

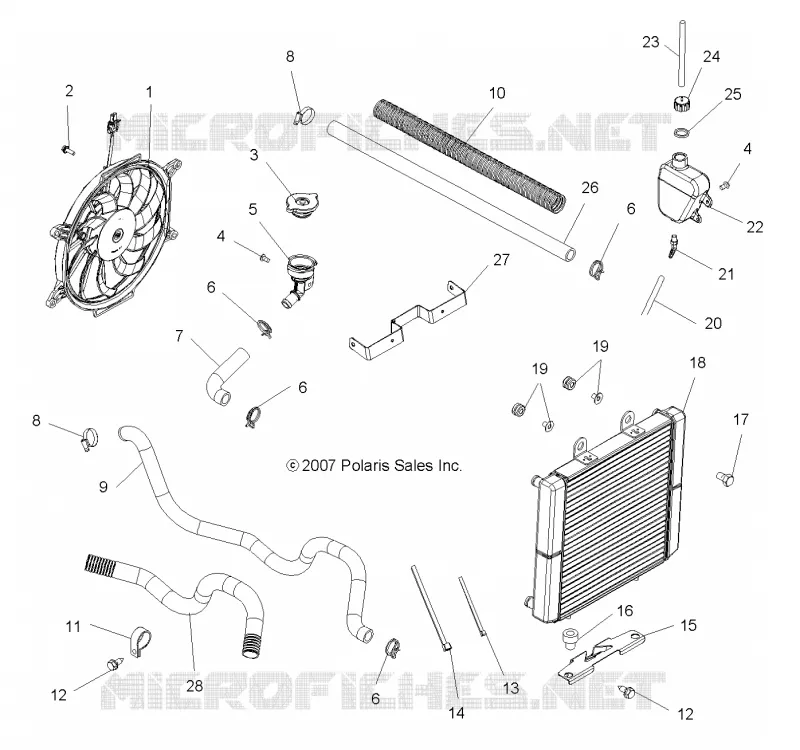

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
