1
Engine displacement
500
2
Year
2009
3
Trim
RANGER 2X4 500 CARB - R09RB50AF
4
Parts Catalog
CHASSIS, FRAME AND FRONT BUMPER
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, CLUTCH COVER
CHASSIS, FRAME AND FRONT BUMPER
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
WELD-CAB/SEAT BASEBLK
1015312067
Not Available
3
FLOOR SUPPORT WELD RIGHT GS BLK
1015378067
Not Available
4
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
5
BOLT
7515522
$7,34 Unit Price incl. VAT
6
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
7
WELD-CAB SUPPORTFRTBLK
1015992067
Not Available
8
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
9
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
10
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
11
BUMPER CAP
5434191
$12,59 Unit Price incl. VAT
12
PLATE-GRILLE BUMPER TOP BLK
5248846067
Not Available
13
SCREW
7517685
$3,14 Unit Price incl. VAT
14
PLATE-GRILLE BUMPER UPPER BLK
5248845067
Not Available
15
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
16
CUP-HOOD LATCH
5436987
9999999
Not Available
17
RIVET
7621334
$2,09 Unit Price incl. VAT
18
WELD-BUMPER BLK
1016808067
Not Available
19
DECAL-REFLECTOR AMBER
7175627
$23,09 Unit Price incl. VAT
20
FLOOR SUPT;LH;BLK
1014902067
Not Available
21
Bracket Oil Tank Support Black
5242049329
Not Available
22
WELD-MAIN FRAME;BLK
1016789067
Not Available

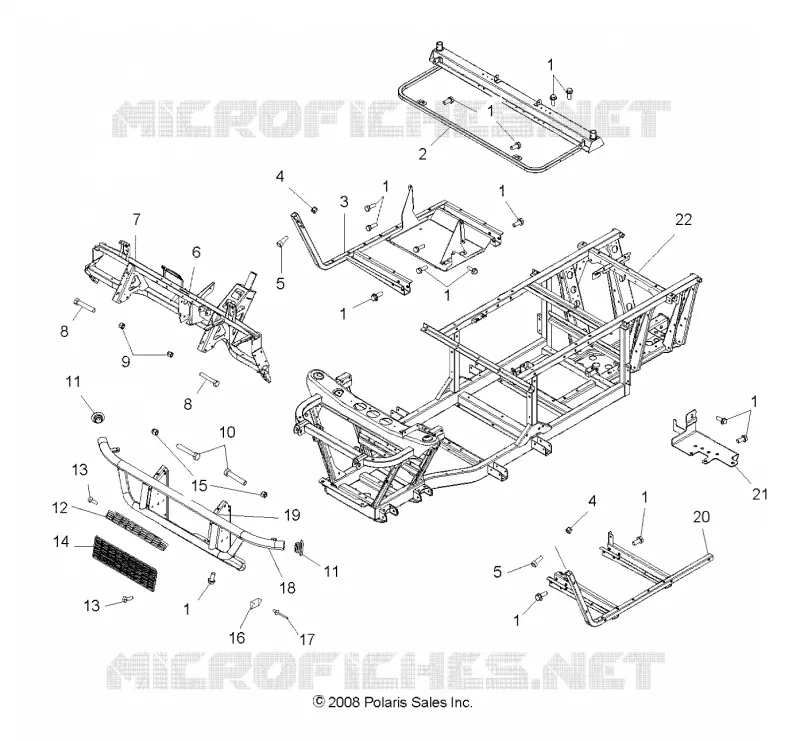

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
