1
Engine displacement
500
2
Year
2009
3
Trim
RANGER 2X4 500 CARB - R09RB50AF
4
Parts Catalog
DRIVE TRAIN, REAR GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
DRIVE TRAIN, REAR GEARCASE MOUNTING
DRIVE TRAIN, REAR GEARCASE
-
-
-
20
21
22
23
24
25
26
27
27
28
28
29
30
12
32
33
33
34
35
35
36
37
38
39
-
SHIM DIFFERENTIAL KIT
2875333
9999999
Not Available
-
ASM-GEARCASE REAR DIFF
1332713
9999999
Not Available
-
HOUSING KIT ASSEMBLY
2203888
9999999
Not Available
1
HYPOID GEAR ASSEMBLY
1332714
9999999
Not Available
2
CARRIER HOUSING
2203498
9999999
Not Available
3
CARRIER COVER
2203499
9999999
Not Available
4
DIFFERENTIAL HALF CASE
5134901
9999999
Not Available
5
COVER-HALF DIFF CASE 026DC104
5134906
9999999
Not Available
6
SIDE GEAR DIFFERENTIAL
5134904
9999999
Not Available
7
GEAR-PINION MATE DIFF 51451
5134903
9999999
Not Available
8
WASHER-THRUST PINION 34096
7556347
9999999
Not Available
9
PIN-CROSS DIFF 026DP101
5134902
9999999
Not Available
10
PIN-ROLL DIFF 500596-15
7661164
9999999
Not Available
11
BOLT-HEX 41221
7518173
9999999
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
WASHER-THRST SIDE GEAR026HS108
7556346
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
DIFFERENTIAL CONE BEARING
3514434
9999999
Not Available
16
DIFFERENTIAL BEARING
3514433
9999999
Not Available
17
BEARING ROLLER
2203500
$74,01 Unit Price incl. VAT
18
BEARING CUP
2203881
9999999
Not Available
19
PINION SPACER
2203510
9999999
Not Available
20
GEAR-CLUTCH 026HS107
5134907
5137196
$278,24 Unit Price incl. VAT
21
O-RING HOUSING HALVES
5412338
9999999
Not Available
22
PIN-LOCK ASM.
2203503
9999999
Not Available
23
TUBE VENT
7052334
9999999
Not Available
24
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
25
SOLENOID-DIFF.LOCK
2410368
9999999
Not Available
26
SPACER KIT
2203505
9999999
Not Available
27
PINION CUP BEARING
3514431
9999999
Not Available
28
PINION CONE BEARING
3514432
$89,24 Unit Price incl. VAT
29
PINION NUT
7547433
9999999
Not Available
30
OIL PINION SEAL
3610102
$57,74 Unit Price incl. VAT
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
PIN LOCK BUSHING
2203507
9999999
Not Available
33
RETURN SPRING; SHIFT
7042210
9999999
Not Available
34
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
35
OIL SHAFT SEAL
3610146
$25,19 Unit Price incl. VAT
36
PLUG-FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
37
SHIFT YOKE
5133759
$272,99 Unit Price incl. VAT
38
LEVER-SHIFT 026SV101
5133760
9999999
Not Available
39
SPRING-LEVER SHIFT 026HE100
7042209
9999999
Not Available

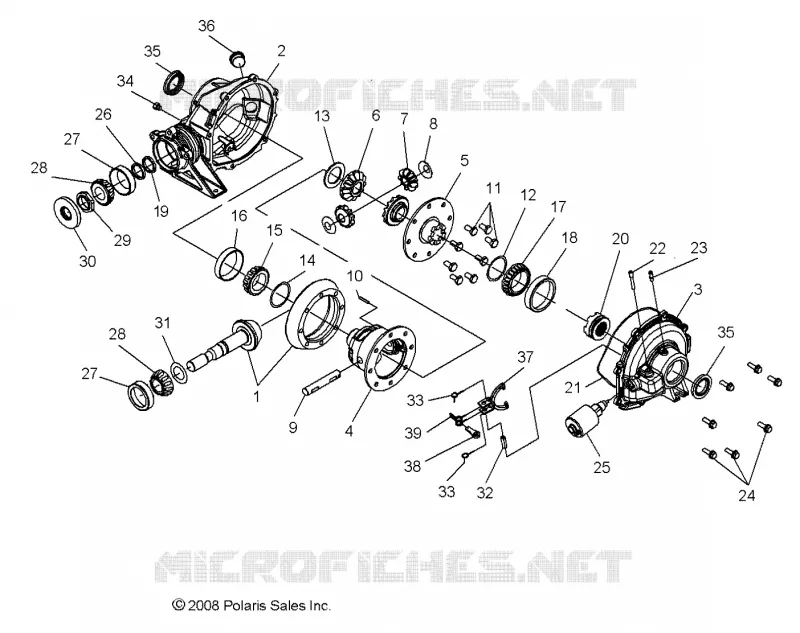

Find the detailed DRIVE TRAIN, REAR GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
