BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ELECTRICAL, INSTRUMENTS CONTROLS
BATTERY
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
STARTER SOLENOID
4012001
4081641
$59,84 Unit Price incl. VAT
2
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
5
SOLENOID STARTER CABLE
4011249
9999999
Not Available
6
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
7
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
8
STRAP-GROUND
5248659
9999999
Not Available
9
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
10
SCREW
7517386
$2,09 Unit Price incl. VAT
11
BATTERY STRAP BRACKET
5248374
9999999
Not Available
12
TOP MOUNT BATTERY; 30 AMP
4010630
4016741
Not Available
13
BATTERY BOX
5434037
$47,24 Unit Price incl. VAT
14
SPLIT POSITIVE CABLE
4011213
9999999
Not Available
15
SPLIT GROUND CABLE
4012387
9999999
Not Available
16
KIT-BATTERY BOLT
2202802
$7,34 Unit Price incl. VAT

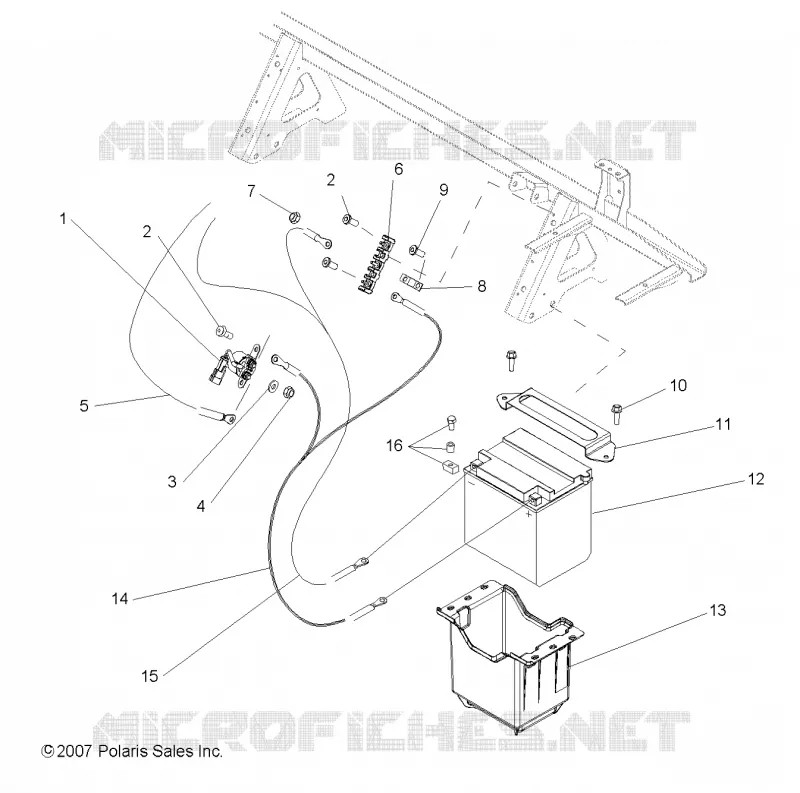

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
