Engine displacement
500
2
Year
2009
3
Trim
RANGER 2X4 500 CARB - R09RB50AF
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
EXHAUST
CYLINDER
27
28
29
30
31
32
33
34
35
36
37
37
37
38
39
1
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
2
PAN HEAD SCREW
3081497
9999999
Not Available
3
SOCKET HEAD BOLT
3081330
9999999
Not Available
4
STRAIGHT PIN
3084857
9999999
Not Available
5
GUIDE VALVE
3084994
9999999
Not Available
6
INTAKE VALVE SEAL
3084858
9999999
Not Available
7
O-RING
3084867
9999999
Not Available
8
ADAPTER
3088208
9999999
Not Available
9
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
10
FLANGE BOLT
3084877
9999999
Not Available
11
BOLT FLANGE(10)
3085359
9999999
Not Available
12
CAMSHAFT ADAPTER
3084866
9999999
Not Available
13
ROCKER COVER GASKET
3085074
9999999
Not Available
14
ROCKER COVER
3085073
9999999
Not Available
15
FLANGE BOLT
3084874
9999999
Not Available
16
EXHAUST VALVE SEAL
3084859
9999999
Not Available
17
BOLT
3084875
9999999
Not Available
18
PLUG
3084860
9999999
Not Available
19
GASKET
3084861
9999999
Not Available
20
PLUG; BLIND
3084862
9999999
Not Available
21
BOLT FLANGE
3086781
9999999
Not Available
22
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
23
STUD
3085326
9999999
Not Available
24
LOCK WASHER
3080530
9999999
Not Available
25
NUT
3087199
9999999
Not Available
26
BOLT-ROCKER SHAFT
3085854
9999999
Not Available
27
BOLT
3084876
9999999
Not Available
28
VALVE ROCKER SHAFT SUPPORT
3084864
9999999
Not Available
29
ROCKER SHAFT SUPPORT VALVE; MAG
3084863
9999999
Not Available
30
KNOCK PIPE
3087266
9999999
Not Available
31
UNION-OIL PUMP
3084849
9999999
Not Available
32
BOLT FLANGE
3084873
9999999
Not Available
33
CYLINDER ASSEMBLY
3089256
9999999
Not Available
34
PIPE-2 ELBOW
3086747
9999999
Not Available
35
GASKET; CYLINDER
3085370
9999999
Not Available
36
CAMSHAFT COVER
3089242
9999999
Not Available
37
HEAD CYLINDER ASSEMBLY
3085527
9999999
Not Available
38
GASKET HEAD ASSEMBLY
3085371
9999999
Not Available
39
ADAPTER
3084879
9999999
Not Available

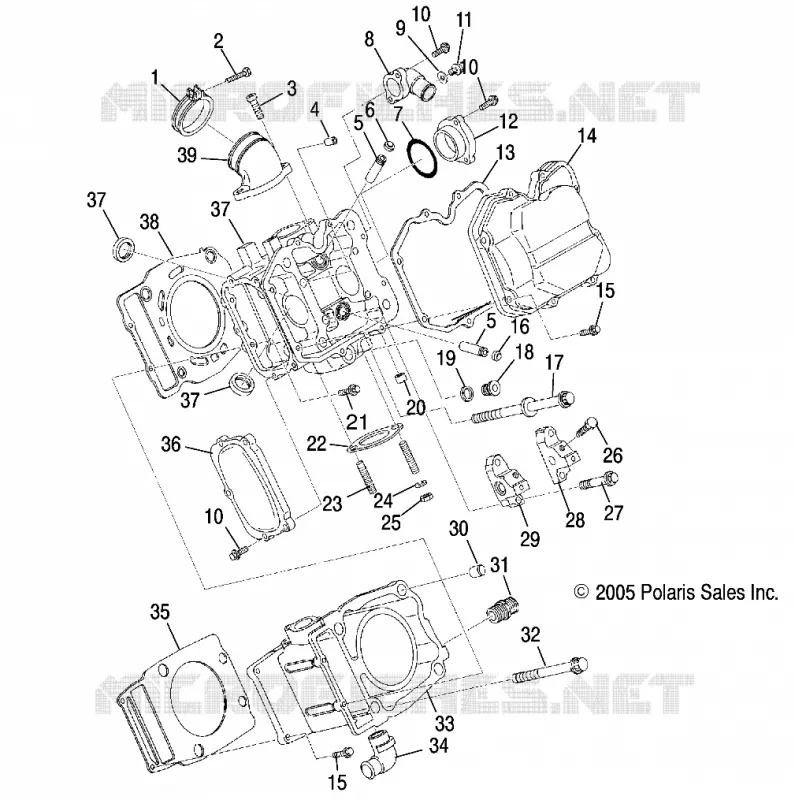

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
