Engine displacement
400
2
Year
1996
3
Trim
XPLORER 400L - W969140
4
Parts Catalog
REAR BRAKE XPLORER 400L W969140 (4935983598C006)
5
Parts Diagram
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING XPLORER 400L W969140 (4935983598C005)
by
REAR WHEEL DRIVE XPLORER 400L W969140 (4935983598C007)
REAR BRAKE XPLORER 400L W969140 (4935983598C006)
1
1
1
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
1
ARM BRAKE CALIPER
5240624
9999999
Not Available
1
ARM BRAKE CALIPER
5211692
9999999
Not Available
2
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
3
PIN DOWEL
7661820
9999999
Not Available
4
CALIPER ASMR.BRAKE
1910209
9999999
Not Available
4
CALIPER R.BRAKE MACH
5131272
9990005
Not Available
5
REAR SEVERE DUTY BRAKE PAD KIT
2200899
9999999
Not Available
6
PISTON SEAL KIT
2200463
$167,99 Unit Price incl. VAT
7
RING MOLDED
5410766
$20,99 Unit Price incl. VAT
8
RING; SQUARE;(1DIAM.)
5410767
2200463
$167,99 Unit Price incl. VAT
9
SUBSTITUTED BY 2200463
5020667
$167,99 Unit Price incl. VAT
10
SPRINGANTI-RATTLE
5240993
9999999
Not Available
11
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
12
SPRING BRAKE COMP.
7041219
9999999
Not Available
13
PIN BRAKE CALIPER
5020666
9999999
Not Available
14
BRAKE GASKET
5830009
9999999
Not Available
15
RAMP MOVEABLE BRAKE
5630458
9990000
Not Available
16
RAMP; STAT.BRAKE
5630457
9990000
Not Available
17
SCREW
7512173
9999999
Not Available
18
BRAKE SEAL
3610026
9999999
Not Available
19
WASHER; SPRING
7555828
9999999
Not Available
20
NUT
7542129
9999999
Not Available
21
BOLT
7515145
9999999
Not Available
22
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
23
WASHER
7555827
$7,34 Unit Price incl. VAT
24
ROD BRAKE
5241621
9999999
Not Available
24
ROD BRAKE (Prior To 10/95 Build)
5224638
Not Available
25
BRAKE FOOT BLK
1040514067
Not Available
25
FOOTBRAKE BLK.
1910144067
Not Available
26
SPRING
7042029
$10,49 Unit Price incl. VAT
27
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
28
WASHER
7555919
$7,34 Unit Price incl. VAT
29
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

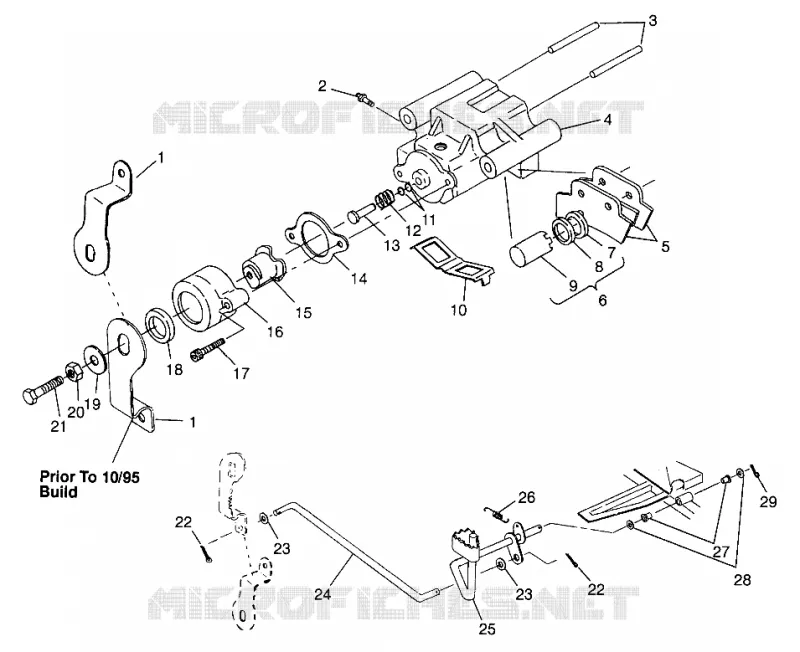

Find the detailed REAR BRAKE XPLORER 400L W969140 (4935983598C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
