1
Engine displacement
400
2
Year
1996
3
Trim
XPLORER 400L - W969140
4
Parts Catalog

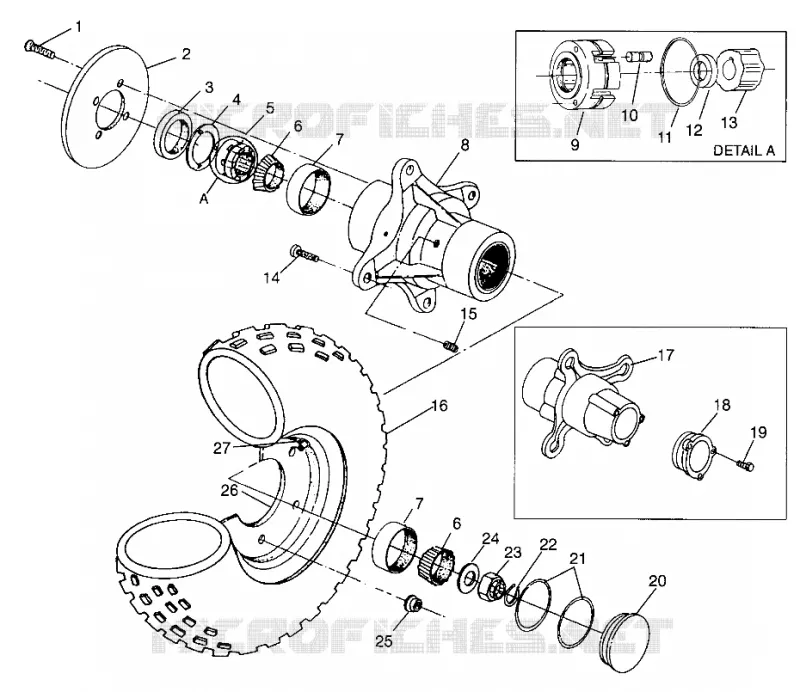

FRONT WHEEL XPLORER 400L W969140 (4935983598B006)
5
Parts Diagram
Parts Catalog
OIL TANK XPLORER 400L W969140 (4935983598A014)
by
FRONT BRAKE XPLORER 400L W969140 (4935983598B007)
FRONT WHEEL XPLORER 400L W969140 (4935983598B006)
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
24
25
26
27
1
1
2
3
3
4
4
5
6
6
6
7
8
9
10
10
10
10
11
11
11
12
13
1
BOLT
7515321
9999999
Not Available
2
DISC; BRAKE
5211326
9999999
Not Available
3
HUB SEAL; FRONT
3610019
$68,24 Unit Price incl. VAT
4
ARMATURE PLATE
5211148
$52,49 Unit Price incl. VAT
5
CLUTCH ASM;FR.HUB;E/M;HVY.
1520214
9999999
Not Available
6
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
7
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
8
HUB ASM;W/BRG.RACE
1520182
9999999
Not Available
9
ROLL CAGE
3250028
9999999
Not Available
10
ROLL
3250010
9999999
Not Available
11
GARTER SPRING
3250032
9999999
Not Available
12
SPACER
3250031
9999999
Not Available
13
CAM
3250030
9999999
Not Available
14
STUD
7515523
$5,76 Unit Price incl. VAT
15
MAGNETIC DRAIN PLUG
7052045
$26,24 Unit Price incl. VAT
16
DUNLOP KT121 AT 25X8-12
5410568
5419027
$153,29 Unit Price incl. VAT
17
HUB ASM(3-LOBE)W/BRG.RACE
1520227
9999999
Not Available
18
CAP HUB 3-LOBE (AWD)
5432347
9999999
Not Available
19
SCREW
7517250
9999999
Not Available
20
HUB CAP
5431368
9999999
Not Available
21
O-RING
5410470
$4,19 Unit Price incl. VAT
22
RING RETAINING
7710436
$9,44 Unit Price incl. VAT
23
NUT RH THREAD
7543201
9999999
Not Available
23
NUT LH THREAD
7543204
9999999
Not Available
24
WASHER
7555903
9999999
Not Available
25
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT
26
RIM FRT 6X12(SILVER)
1520179117
Not Available
27
RIM VALVE
1525017
$12,59 Unit Price incl. VAT

Find the detailed FRONT WHEEL XPLORER 400L W969140 (4935983598B006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
