STEERING POST XPLORER 400L W969140 (4935983598B012)
5
Parts Diagram
Parts Catalog
HANDLEBAR HEADLIGHT POD XPLORER 400L W969140 (4935983598B010)
by
WISHBONES XPLORER 400L W969140 (4935983598B013)
STEERING POST XPLORER 400L W969140 (4935983598B012)
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
13
14
15
16
1
2
3
4
4
5
1
POST STRG.ASM.
1843051
9999999
Not Available
2
BUSHING STRG.CONSOLE
5431573
5433415
$16,79 Unit Price incl. VAT
3
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
4
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
5
PIN; COTTER
7661633
9999999
Not Available
6
BUSHING
7555878
9999999
Not Available
7
O-RING
5410772
9999999
Not Available
8
SPACER STRG.POST
5431571
9999999
Not Available
9
NUT HEX SLOTTED
7543203
9999999
Not Available
10
STEERING BUSHING LOWER
5431570
9999999
Not Available
11
MONOBOLT RIVET
7661632
9999999
Not Available
12
PLUG GREASE STRG.
5431574
9999999
Not Available
13
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
14
BUSHING STRG.CONSOLE
5431572
5433416
$16,79 Unit Price incl. VAT
15
BRKT UP.STRG.BUSH BLK.
5222999067
Not Available
16
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

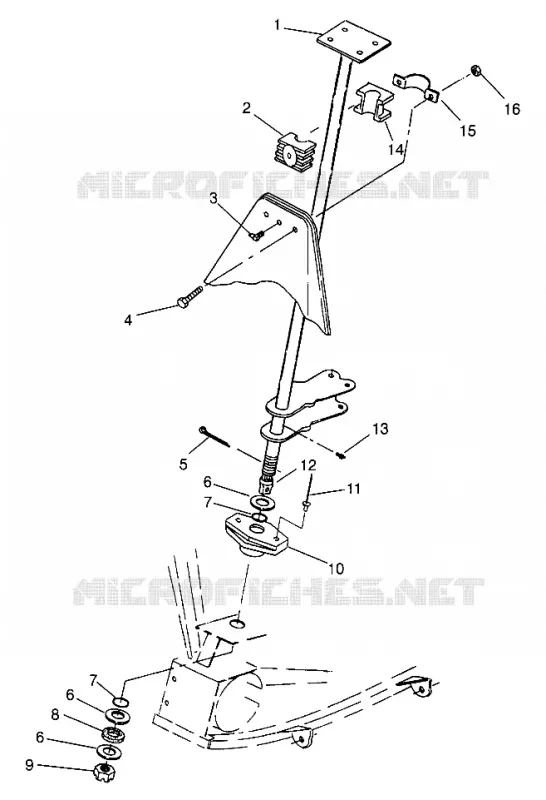

Find the detailed STEERING POST XPLORER 400L W969140 (4935983598B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
