Engine displacement
400
2
Year
1996
3
Trim
XPLORER 400L - W969140
4
Parts Catalog
WISHBONES XPLORER 400L W969140 (4935983598B013)
5
Parts Diagram
Parts Catalog
STEERING POST XPLORER 400L W969140 (4935983598B012)
by
CENTER TIGHTENER XPLORER 400L W969140 (4935983598B014)
WISHBONES XPLORER 400L W969140 (4935983598B013)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
13
21
22
22
22
22
23
23
24
24
25
26
26
26
26
27
28
28
29
29
30
31
1
NUT LOCK
7542403
9999999
Not Available
2
BUSHING
5333367
9999999
Not Available
3
TIE ROD ASM.
1822202
2201741
$309,74 Unit Price incl. VAT
4
SEAL BOOT ROD END ASSEMBLY
1822179
9999999
Not Available
5
ROD END SEAL BOOT
5410540
9999999
Not Available
6
ROD END; RH
7060149
9999999
Not Available
7
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
8
TIE ROD
5020768
9999999
Not Available
9
NUT LH 10 MM.
7546902
9999999
Not Available
10
ROD END; LEFT; 10 MM
7060171
$115,49 Unit Price incl. VAT
11
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
12
NUT CASTLE(10)
7546904
9999999
Not Available
13
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
16
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
17
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
18
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
19
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
20
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
21
SCREW
7512084
$2,09 Unit Price incl. VAT
22
SHIELD RH CV JOINT
5431149
9999999
Not Available
22
SHIELD LH CV JOINT
5431150
9999999
Not Available
23
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
24
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
25
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
26
KIT A-FRAME RH
2200532
9999999
Not Available
26
KIT A-FRAME LH
2200531
9999999
Not Available
27
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
28
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
29
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
30
SCREW
7515554
9999999
Not Available
31
SCREW
7515415
9999999
Not Available

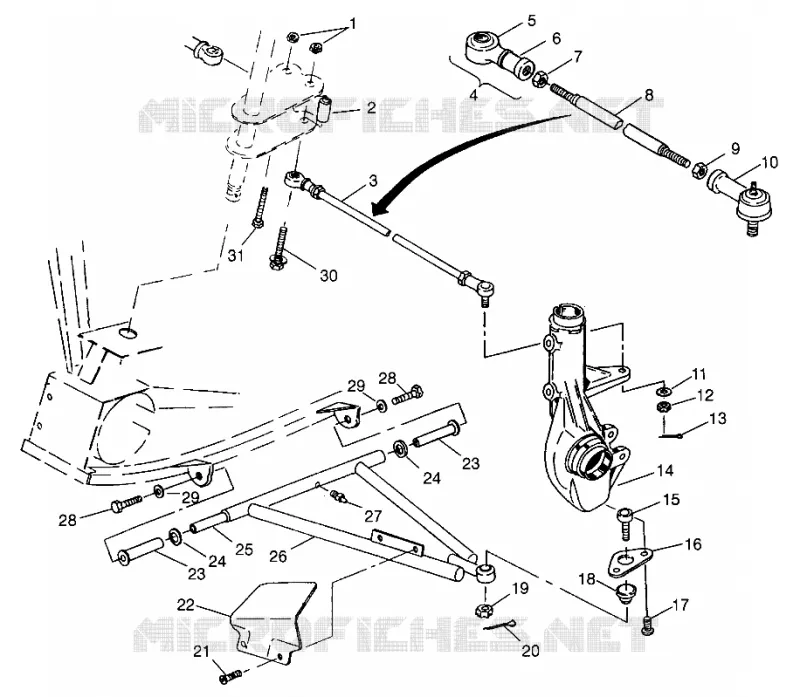

Find the detailed WISHBONES XPLORER 400L W969140 (4935983598B013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
