1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 4X4 - W968144
4
Parts Catalog
WATER PUMP MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D005)
5
Parts Diagram
Parts Catalog
RECOIL STARTER MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D004)
by
FUEL PUMP MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D012)
WATER PUMP MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D005)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
1
CLAMP; HOSE
3084191
9999999
Not Available
2
HOSE MAIN
3084938
9999999
Not Available
3
THERMOSTAT
3084940
9999999
Not Available
4
THERMOSTAT SWITCH
3085352
9999999
Not Available
5
SEAL WASHER
3084942
9999999
Not Available
6
IMPELLER
3084935
9999999
Not Available
7
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
8
SELF-LOCK NUT
3085077
9999999
Not Available
9
GASKET WATER PUMP
3084937
9999999
Not Available
10
WATER PUMP COVER
3085351
9999999
Not Available
11
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
12
BOLT FLANGE(10)
3085359
9999999
Not Available
13
FLANGE BOLT
3084877
9999999
Not Available

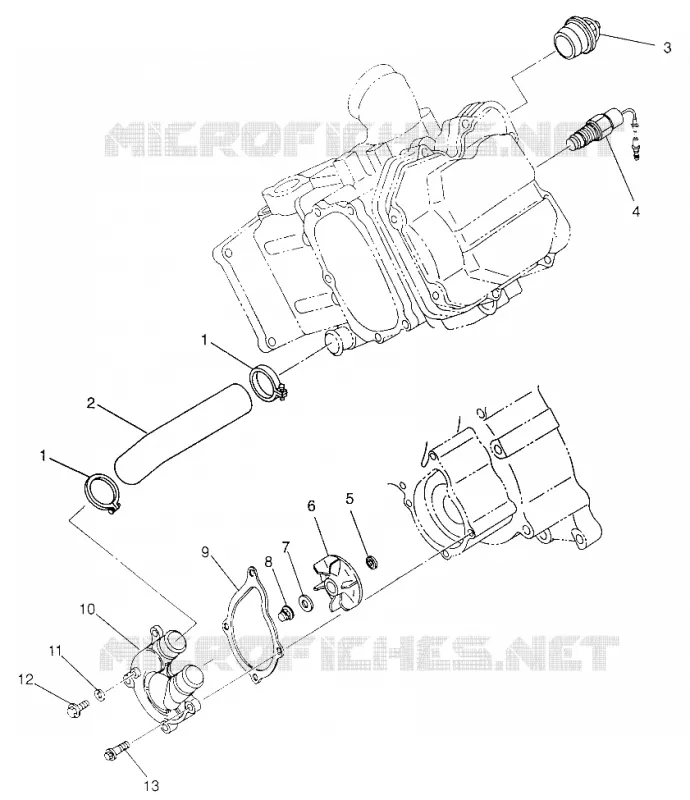

Find the detailed WATER PUMP MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
