1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 4X4 - W968144
4
Parts Catalog
MAGNETO MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D010)
5
Parts Diagram
Parts Catalog
OIL FILTER MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D009)
by
STARTING MOTOR MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D011)

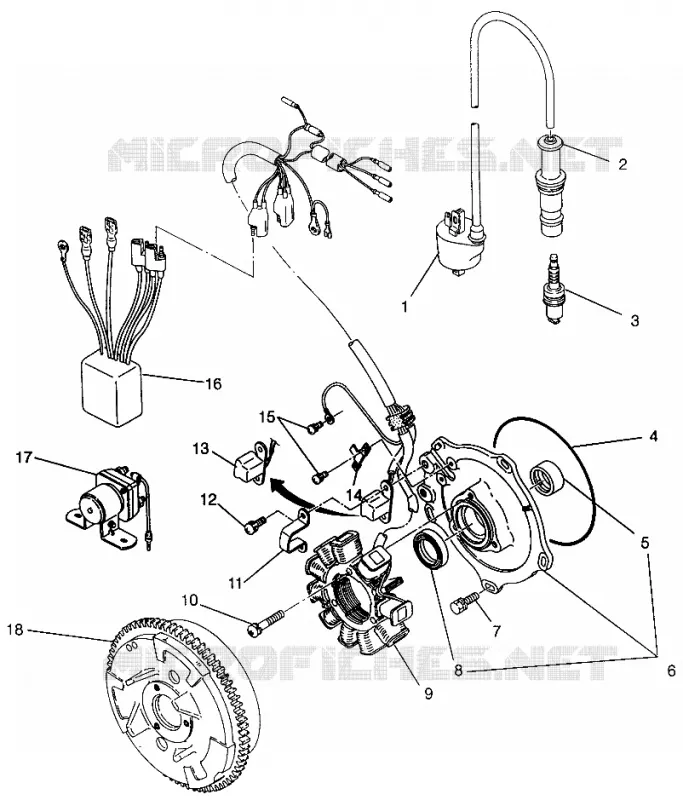

MAGNETO MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D010)
1
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
COIL ASMIGNITION
3084690
9999999
Not Available
1
COIL IGNITION
3084979
9999999
Not Available
2
SPARKPLUG CAP
3084980
9999999
Not Available
3
SPARK PLUG
3070175
$7,34 Unit Price incl. VAT
4
O-RING
3084978
9999999
Not Available
5
BEARING; METAL
3084972
9999999
Not Available
6
PLATE
3084971
9999999
Not Available
6
PLATE ASM.
3084970
9999999
Not Available
7
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
8
OIL SEAL
3084973
9999999
Not Available
9
STATOR
3084974
9999999
Not Available
10
SCREW&WASHER ASM(10)
3081342
9999999
Not Available
11
COVER PULSE
3084975
9999999
Not Available
12
SCREW&WASHER ASM.
3084976
9999999
Not Available
13
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
14
CLAMP
3084977
9999999
Not Available
15
COIL PULSER
3085360
9999999
Not Available
16
CDI SYSTEM
3085382
9999999
Not Available
17
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
18
FLYWHEEL W/RING GEAR
3084969
9999999
Not Available

Find the detailed MAGNETO MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
