1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 4X4 - W968144
4
Parts Catalog

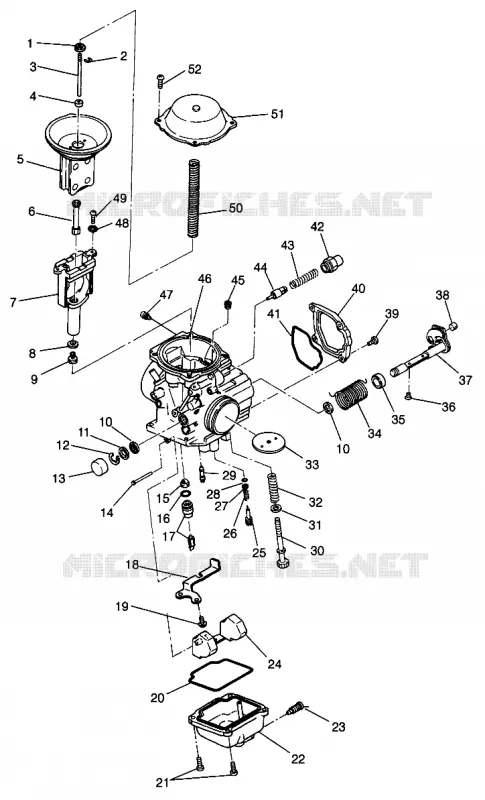

CARBURETOR MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D006)
5
Parts Diagram
Parts Catalog
CYLINDER MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D001)
by
OIL PUMP MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D008)
CARBURETOR MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D006)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
JET NEEDLE
3130528
9999999
Not Available
4
RING
3130509
3130752
$10,49 Unit Price incl. VAT
5
DIAPHRAGM ASSEMBLY
3130506
9999999
Not Available
6
NEEDLE JET (P-8)
3130510
9999999
Not Available
7
JETBLOCK ASSEMBLY
3130504
$120,74 Unit Price incl. VAT
8
WASHER
3130014
$3,14 Unit Price incl. VAT
9
MAIN JET
3130527
9999999
Not Available
10
SEAL
3130515
9999999
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
E-RING
3130518
9999999
Not Available
13
CAP
3130519
9999999
Not Available
14
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
15
FILTER
3130534
$15,74 Unit Price incl. VAT
16
O-RING
3130533
$10,49 Unit Price incl. VAT
17
VALVE NEEDLE (1.5)
3130668
3131360
$99,74 Unit Price incl. VAT
18
PLATE SPACER BRACKET; UPPER; MATTE BLACK
3130594
9999999
Not Available
19
SCREW
3130591
$7,34 Unit Price incl. VAT
20
O-RING
3130532
$57,74 Unit Price incl. VAT
21
SCREW
3130520
$3,14 Unit Price incl. VAT
22
FLOATBODY ASSEMBLY
3130590
$204,74 Unit Price incl. VAT
23
SCREW
3130521
$18,89 Unit Price incl. VAT
24
FLOAT ASSEMBLY
3130529
$157,49 Unit Price incl. VAT
25
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
26
SPRING
3130525
9999999
Not Available
27
WASHER LOCK
3130523
$4,19 Unit Price incl. VAT
28
O-RING
3130522
$10,49 Unit Price incl. VAT
29
JET PILOT #40
3130624
$52,49 Unit Price incl. VAT
30
ADJUSTER SCREW
3130546
9999999
Not Available
31
RING
3130545
9999999
Not Available
32
SPRING
3130544
9999999
Not Available
33
VALVE THROTTLE 100
3130502
$99,74 Unit Price incl. VAT
34
SPRING
3130589
9999999
Not Available
35
RING
3130514
9999999
Not Available
36
SCREW
3130501
9999999
Not Available
37
SHAFT ASM;THROTTLE
3130513
9999999
Not Available
38
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
39
SCREW
3130535
$13,64 Unit Price incl. VAT
40
COVER
3130511
$83,99 Unit Price incl. VAT
41
O-RING
3130512
9999999
Not Available
42
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
43
SPRING
3130538
9999999
Not Available
44
PLUNGER ASM.
3130593
3130539
$73,49 Unit Price incl. VAT
45
AIR PILOT JET
3130625
$27,29 Unit Price incl. VAT
46
CARBURETOR
3130500
9999999
Not Available
47
SCREW AND WASHER
3084205
9999999
Not Available
48
WASHER SPRING
3130540
9999999
Not Available
49
SCREW
3130541
9999999
Not Available
50
SPRING
3130505
$52,49 Unit Price incl. VAT
51
COVER ASSEMBLY
3130503
$125,99 Unit Price incl. VAT
52
SCREW
3130592
3130924
$3,14 Unit Price incl. VAT

Find the detailed CARBURETOR MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605D006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
