1
Engine displacement
1000
2
Year
2020
3
Trim
RZR XP 4 1000
4
Parts Catalog

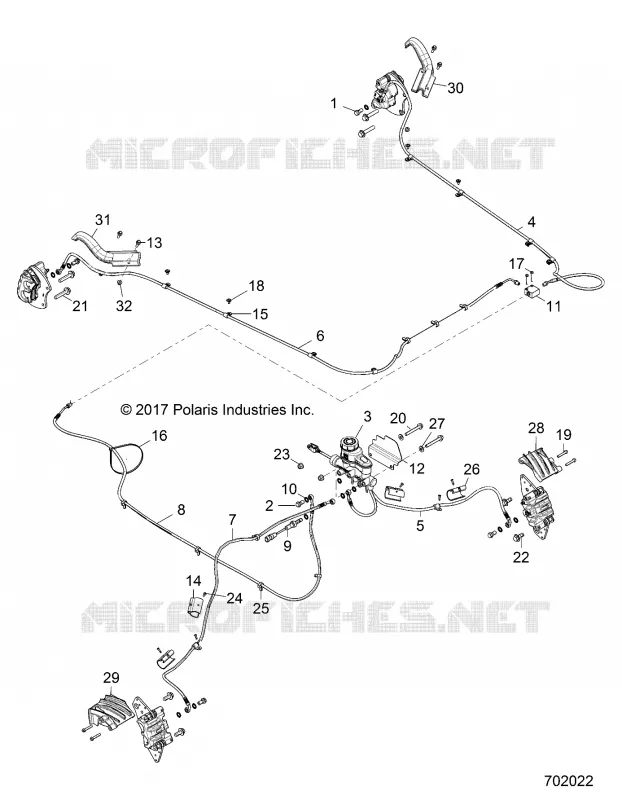

BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT BELT MOUNTING
by
DRIVE TRAIN, HALF SHAFT, REAR
BRAKE LINES AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
TANDEM MASTER CYLINDER ASSEMBLY
1911982
$246,74 Unit Price incl. VAT
4
BRAKELINE; REAR; LEFT; 67.32 IN
1912000
$188,99 Unit Price incl. VAT
5
LINE-BRK FL 31.9 20B 90SB 180
1912880
$125,99 Unit Price incl. VAT
6
BRAKELINE REAR 76.38 IN
1912061
$188,99 Unit Price incl. VAT
7
LINE-BRK FR 44.4 70B 90SB 180
1912881
$173,24 Unit Price incl. VAT
8
LINE-BRK MCT 94 20F 20B 135 J
1912165
$178,49 Unit Price incl. VAT
9
SWITCH
4014225
$167,99 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
SHIELD-MASTER CYL;APEX
5259049
$89,24 Unit Price incl. VAT
13
HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM
7519121
$7,34 Unit Price incl. VAT
14
BRAKE LINE CLIP; INNER
5451487
$5,76 Unit Price incl. VAT
15
WIRE/TUMB CLAMP; .25
7081246
$2,09 Unit Price incl. VAT
16
CLIP-NYLON C FIR-TREE
7662310
$9,44 Unit Price incl. VAT
17
SCREW
7512025
$9,44 Unit Price incl. VAT
18
SCR-10-24X1/2 PH/TX/TRIRD/SEMB
7518176
$9,44 Unit Price incl. VAT
19
SCREW
7519280
$9,44 Unit Price incl. VAT
20
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
21
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
22
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT
23
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
24
POP RIVET
7621323
$2,09 Unit Price incl. VAT
25
CLIP
7670102
$4,19 Unit Price incl. VAT
26
BRAKE LINE CLIP; OUTER
5451488
$10,49 Unit Price incl. VAT
27
WASHER
7555954
$9,44 Unit Price incl. VAT
28
SCRAPER RZR 1K FRONT LH
5633827
$73,49 Unit Price incl. VAT
29
SCRAPER FRONT RIGHT RZR
5633828
$73,49 Unit Price incl. VAT
30
GUIDE REAR LEFT RZR XP
5454095
$68,24 Unit Price incl. VAT
31
GUIDE REAR RIGHT RZR XP
5454096
$68,24 Unit Price incl. VAT
32
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT

Find the detailed BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
