1
Engine displacement
1000
2
Year
2020
3
Trim
RZR XP 4 1000
4
Parts Catalog
REAR SUSPENSION SHOCK INTERNALS
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by

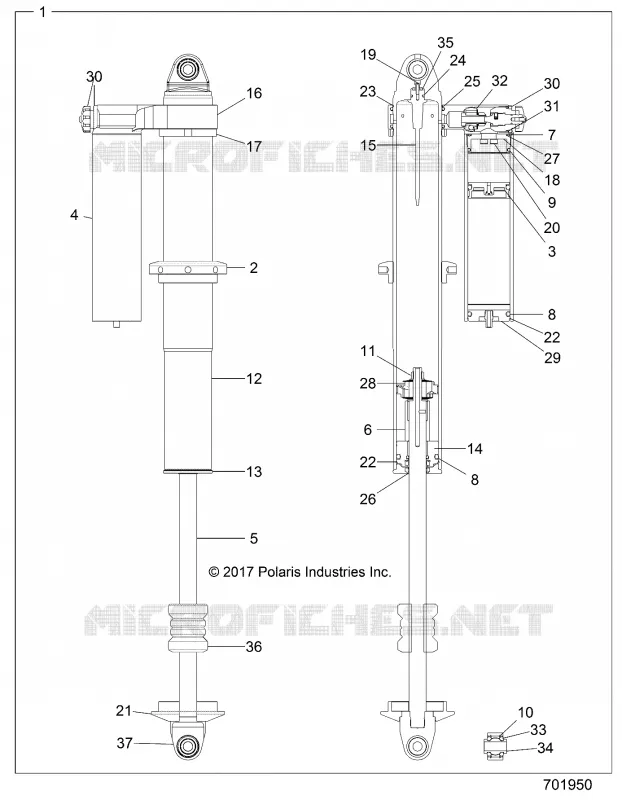

REAR SUSPENSION SHOCK INTERNALS
REAR SUSPENSION SHOCK INTERNALS
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
1
SHOCK; REAR
7044854
$1 427,99 Unit Price incl. VAT
2
NUT-SPRING 2.5 CLR 1425124-AC
1800836
$162,74 Unit Price incl. VAT
3
ASM-PISTON RES. 2.5 0925205
1800752
$272,99 Unit Price incl. VAT
4
RES-2.5X9.5L CLR 1625027
1800854
$561,74 Unit Price incl. VAT
5
SHAFT; SSCHR NEEDLE (1425101)
1800632
$661,49 Unit Price incl. VAT
6
SPACER 2.037L 1425106
1800657
$52,49 Unit Price incl. VAT
7
O-RING
1800613
$20,99 Unit Price incl. VAT
8
O-RING
1800508
$10,49 Unit Price incl. VAT
9
O-RING
1800500
$3,66 Unit Price incl. VAT
10
RETAINING RING
1800482
$20,99 Unit Price incl. VAT
11
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
12
BODY-2.5 21.07L 1625022-HC
1800838
$545,99 Unit Price incl. VAT
13
CAP WIPER; 2.5 IN X .88 IN
1800855
$89,24 Unit Price incl. VAT
14
ASM-SEAL HD 2.5X.88PI 1625024
1800856
$204,74 Unit Price incl. VAT
15
NEEDLE-1PC PRESS-IN 1625023
1800840
$104,99 Unit Price incl. VAT
16
BRIDGE-2.5 ADJ;CLR 1625034-AC
1800841
$482,99 Unit Price incl. VAT
17
JAM NUT-2.5 1325445-AC
1800842
$68,24 Unit Price incl. VAT
18
MOUNT-RES 2.5IN (WER-1125335)
1800488
$167,99 Unit Price incl. VAT
19
SCREW-#8 LOW HD 1600025
1800843
$9,44 Unit Price incl. VAT
20
SCREW-1/4-20X.50 1200338
1800754
$6,29 Unit Price incl. VAT
21
SPRING RETAINER; 2.5 IN
1501007
9999999
Not Available
22
RETAINING RING; 2.5 IN
1800847
$41,99 Unit Price incl. VAT
23
WIRE RING 2.48X.062 1525023
1800846
$15,74 Unit Price incl. VAT
24
O-RING
1800095
$2,09 Unit Price incl. VAT
25
O-RING
1800497
$10,49 Unit Price incl. VAT
26
WIPER; .875SHFT (1425107)
1800641
$68,24 Unit Price incl. VAT
27
O-RING
1800502
$3,66 Unit Price incl. VAT
28
PISTON; 2.5 NO BLD (1425128)
1800659
9999999
Not Available
29
ASM-END CAP 2.5 1625028-AC
1800844
$241,49 Unit Price incl. VAT
30
ASM-SS RET. NUT;GLD 1125697-AG
1800857
$204,74 Unit Price incl. VAT
31
O-RING
1800503
$3,14 Unit Price incl. VAT
32
ASM-CHECK VALVE 1145712-4
1800848
$115,49 Unit Price incl. VAT
33
O-RING
1800810
$6,81 Unit Price incl. VAT
34
BEARING; HCOM9T-12MM 1600131
1800880
$80,84 Unit Price incl. VAT
35
O-RING 202 1600078
1800887
$3,14 Unit Price incl. VAT
36
BUMP STOP-3.125 0400301-C
1800889
$89,24 Unit Price incl. VAT
37
SHAFT LOOP
1800555
$440,99 Unit Price incl. VAT

Find the detailed REAR SUSPENSION SHOCK INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
