Parts Catalog
CHASSIS, CAB
5
Parts Diagram
Parts Catalog
BRAKES, PEDAL
by
DRIVE TRAIN, GEAR SELECTOR
CHASSIS, CAB
1
2
3
3
4
4
5
5
6
7
8
8
9
10
10
11
12
13
13
14
14
14
15
15
16
16
17
18
19
20
21
22
23
1
VISOR PANEL TRIM; GLOSS BLACK
5450657070
Not Available
2
BOLT
7519650
$7,34 Unit Price incl. VAT
3
WELD-ROPS FRONT CROSS LSQU
1020755630
Not Available
3
FRONT CROSS ROPS; MATTE BLACK
1020755458
Not Available
4
CAB FRAME; FRONT; LEFT; MATTE BLACK
1020052458
Not Available
4
WELD-ROPS MP LH LSQU
1020052630
Not Available
5
WELD-ROPS MP RH LSQU
1020053630
Not Available
5
RIGHT HAND ROPS; MATTE BLACK
1020053458
Not Available
6
HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM
7519905
$4,19 Unit Price incl. VAT
7
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
8
HEX NUT; 10 MM X 1.5 MM
7547746
$5,24 Unit Price incl. VAT
9
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
10
MID ROPS HOOP WELD; MATTE BLACK
1022059458
Not Available
10
WELD-HOOP ROPS MID MP LSQU
1022059630
Not Available
11
HEX FLANGE SCREW; 10 MM X 1.5 MM X 65 MM
7519903
$17,84 Unit Price incl. VAT
12
NYLOC NUT; 10 MM X 1.5 MM
7547268
$2,09 Unit Price incl. VAT
13
CAB FRAME; MID; MATTE BLACK
1020057458
Not Available
13
WELD-BRACE ROPS MID LSQU
1020057630
Not Available
14
WELD-HOOP ROPS REAR HC MP BLK
1022099458
Not Available
14
REAR ROPS HOOP WELD; MATTE BLACK
1022058458
Not Available
14
ROPS HOOD WELD; REAR; LIME SQUEEZE
1022058630
Not Available
15
ROPS REAR LEFT MATTE BLACK
1022098458
Not Available
15
WELD-ROPS REAR NO RES MP LH LS
1022098630
Not Available
16
WELD-ROPS REAR NO RES MP RH LS
1022097630
Not Available
16
ROPS REAR RIGHT MATTE BLACK
1022097458
Not Available
17
BOLSTER; LEFT SIDE; MATTE BLACK
1021907458
Not Available
18
WELD-BOLSTER; RIGHT; MATTE BLACK
1021908458
Not Available
19
HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM
7518450
$3,14 Unit Price incl. VAT
20
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519956
$4,19 Unit Price incl. VAT
21
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
22
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519779
$4,19 Unit Price incl. VAT
23
NUT-HXFL-M8X1.25 8 ZB3 NYL
7547454
7548028
$5,24 Unit Price incl. VAT

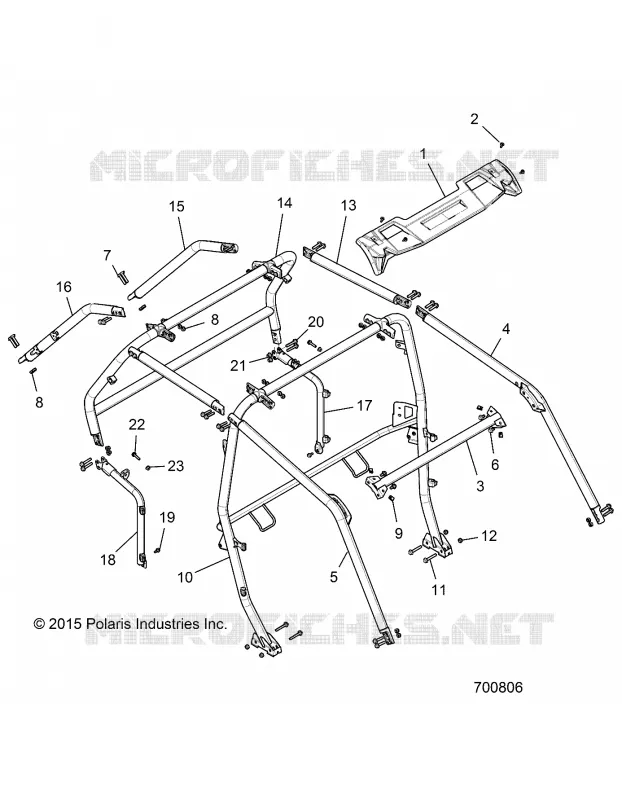

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
