1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK ASSAULT 144 / SC SELECT
4
Parts Catalog
DRIVE TRAIN, CHAINCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, JACKSHAFT AND DRIVESHAFT
by
ENGINE, PISTON & CRANKSHAFT
DRIVE TRAIN, CHAINCASE
1
1
1
2
3
4
5
6
7
8
8
9
9
10
10
10
11
12
13
14
14
15
16
17
18
19
20
21
21
21
22
22
23
24
25
26
1
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
2
INTERMEDIATE CHAINCASE ASSEMBLY
1333119
$390,59 Unit Price incl. VAT
3
VENT TUBE; .155 X .75; DIA
5334764
$62,99 Unit Price incl. VAT
4
CHAIN TIGHTENER ASSEMBLY
1332427
$135,44 Unit Price incl. VAT
5
WASHER-THREAD SEAL;3/8-16-UNC
7556340
$6,29 Unit Price incl. VAT
6
NUT
7547017
$10,49 Unit Price incl. VAT
7
SCR-HH-M10X1.5X70 8.8 ZOD
7519938
$36,74 Unit Price incl. VAT
8
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
9
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
10
19 TOOTH SPROCKET
3221095
$68,24 Unit Price incl. VAT
10
SPROCKET 22 TOOTH
3221098
$73,49 Unit Price incl. VAT
10
SPROKET 20 TOOTH
3221096
$73,49 Unit Price incl. VAT
11
CHAINCASE COVER GASKET
5814028
$52,49 Unit Price incl. VAT
12
CHAINCASE SLEEVE
5137587
$13,64 Unit Price incl. VAT
13
CHAINCASE COVER ASSEMBLY
1333118
1337284
$272,99 Unit Price incl. VAT
14
SCR-M6X1.0X30 8.8 HXFL ZOD
7518993
$4,19 Unit Price incl. VAT
15
BALL BEARING
3514643
$40,94 Unit Price incl. VAT
16
SLEEVE-SEAL
5136533
5140953
$47,24 Unit Price incl. VAT
17
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
18
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT
19
HEX HEAD SCREW; 10 MM X 1.25 MM X 20 MM
7519004
$7,34 Unit Price incl. VAT
20
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
21
SPROCKET 40 TOOTH
3222099
3225069
$73,49 Unit Price incl. VAT
21
SPKT 39T 3/4W 15T HYVO PM
3222108
3225070
$89,24 Unit Price incl. VAT
21
SPKT 41T 15T SPL HYVO PM
3222101
3225068
$73,49 Unit Price incl. VAT
22
DRIVE CHAIN
3221112
$194,24 Unit Price incl. VAT
22
CHAIN HYVO 70 PITCH 3/4 WIDE
3221115
$262,49 Unit Price incl. VAT
23
DOWEL HOL M9X10(10)
7663007
$7,34 Unit Price incl. VAT
24
PLUG-MAGNETIC M14X1.25
7052458
7052674
$36,74 Unit Price incl. VAT
25
O-RING 20.30 MM X 2.62 MM
5413563
$3,14 Unit Price incl. VAT
26
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available

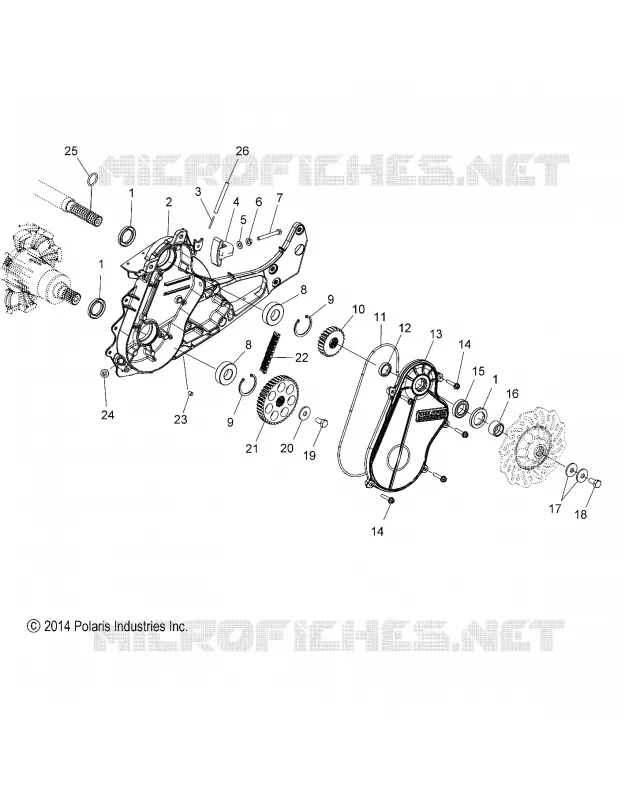

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
