1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK ASSAULT 144 / SC SELECT
4
Parts Catalog
REAR TRACK SHOCK
5
Parts Diagram
Parts Catalog
SEAT
by
IFS SHOCK
REAR TRACK SHOCK
-
8
8
9
10
11
12
13
14
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
-
SHOCK-RTS W/E ASSAULT
7044379
$892,49 Unit Price incl. VAT
1
EYELET
1800096
$194,24 Unit Price incl. VAT
2
PISTON CONVEX
1800001
9999999
Not Available
3
STUD; CLICKER (400613)
1800352
$57,74 Unit Price incl. VAT
4
PISTON
1800217
9999999
Not Available
5
SCREW W/THRU HOLE
1800219
$20,99 Unit Price incl. VAT
6
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
7
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
8
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
9
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
10
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
11
SEAL HEAD ASSEMBLY
1800414
9999999
Not Available
12
SHAFT .625X9.15L 1500364
1800784
9999999
Not Available
13
SPACER SHAFT .850 (900800)
1800377
$47,24 Unit Price incl. VAT
14
O-RING
1800184
$10,49 Unit Price incl. VAT
15
KNOB; CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
16
BODY RT 10.77L BLK 1500363-AB
1800786
9999999
Not Available
17
BODY RES. 4.125L BLK (1420034)
1800668
9999999
Not Available
18
ASM IFP PISTON 1.75BLD 0624204
1800739
$68,24 Unit Price incl. VAT
19
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
20
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
21
ASM END CAP 1.750AV 1024207
1800740
9999999
Not Available
22
BUSHING
1800406
$9,44 Unit Price incl. VAT
23
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
24
WASHER
1800204
9999999
Not Available
25
3/8 AN WASHER (10)
1800050
$7,34 Unit Price incl. VAT
26
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
27
O-RING BODY
1800027
$3,66 Unit Price incl. VAT

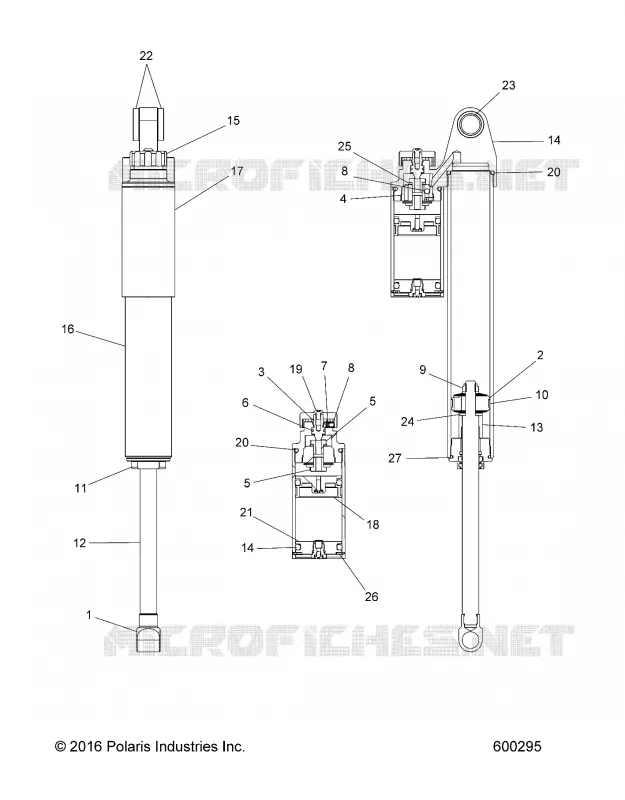

Find the detailed REAR TRACK SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
