1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK ASSAULT 144 / SC SELECT
4
Parts Catalog
BRAKES, BRAKE SYSTEM
5
Parts Diagram
Parts Catalog
WINDSHIELD
by
HEADLIGHT AND TAILLIGHT
BRAKES, BRAKE SYSTEM
-
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
-
MASTER CYLINDER ASSEMBLY
2206021
$493,49 Unit Price incl. VAT
1
KIT-RESRVR CVR SCREWS 98-30276
2205331
$47,24 Unit Price incl. VAT
2
KIT-RSRVR GSKT&CVR ASM98-30274
2205332
$173,24 Unit Price incl. VAT
3
RESERVOIR SHOCK WITH SCREWS KIT
2205330
$125,99 Unit Price incl. VAT
4
KIT-CLAMP SCR 98-16760
2202798
$41,99 Unit Price incl. VAT
5
KIT-CLAMP HB 11/16 98-19608
2203093
$94,49 Unit Price incl. VAT
6
PISTON WITH RESERVOIR BODY ASSEMBLY KIT
2205335
$141,74 Unit Price incl. VAT
7
KIT-PIVOT PIN 98-30278
2205329
$41,99 Unit Price incl. VAT
8
SNOWMOBILE PARKING BRAKE LOCK MECHANISM
2205333
$120,74 Unit Price incl. VAT
9
LEVER AND PARK LEVER ASSEMBLY KIT
2205334
$173,24 Unit Price incl. VAT
10
STOPLIGHT SWITCH KIT
2205906
$104,99 Unit Price incl. VAT
11
KIT-M10X1.25 BANJO 98-20930
2203392
$36,74 Unit Price incl. VAT
12
CRUSH WASHER KIT; COPPER
2203393
$47,24 Unit Price incl. VAT
13
K-BRKLN 768MM 20X20 98-35703
2207635
$225,74 Unit Price incl. VAT
14
BLEEDER FITTING KIT
2202205
$68,24 Unit Price incl. VAT
15
PHANTOM CALIPER KIT
2205501
$666,74 Unit Price incl. VAT
16
RETAINING PIN KIT
2202206
$41,99 Unit Price incl. VAT
17
BRAKE PAD
2205500
$140,16 Unit Price incl. VAT
18
SEAL KIT
2202204
$73,49 Unit Price incl. VAT
19
CALIPER AND PISTON KIT
2204035
$114,44 Unit Price incl. VAT
20
SERVICE DISC KIT
2205373
$440,99 Unit Price incl. VAT
21
WASHER-M10.4X25X2.4 ZOD
7556473
$4,19 Unit Price incl. VAT
22
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT

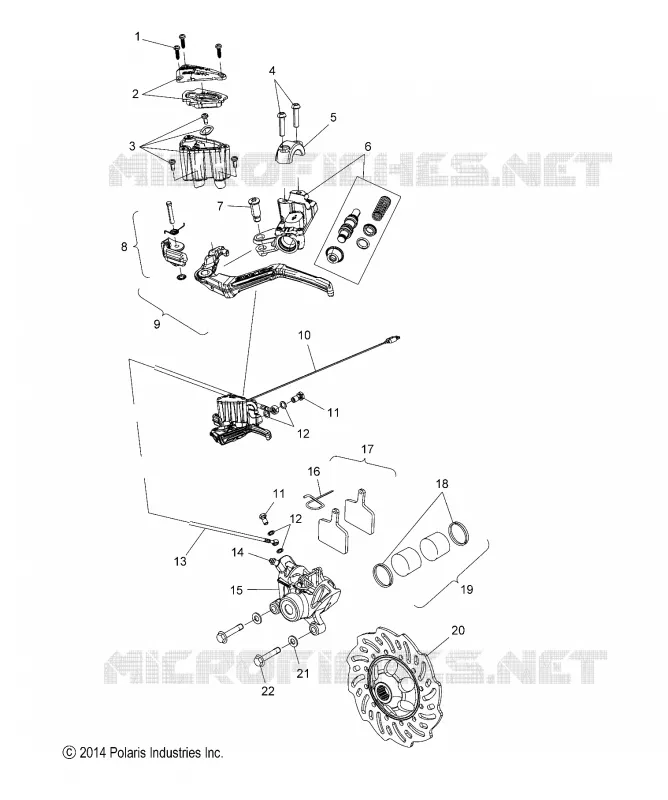

Find the detailed BRAKES, BRAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
