1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK ASSAULT 144 / SC SELECT
4
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS AND RUNNING BOARDS
by
DRIVE TRAIN, CLUTCH, SECONDARY
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
1
2
3
4
5
6
7
7
8
9
9
10
10
11
11
11
12
13
14
14
15
16
17
17
17
17
17
17
18
19
20
20
20
20
20
20
21
22
1
TUBULAR FRAME ASSEMBLY; FRONT; ALUMINUM
1024052
$241,49 Unit Price incl. VAT
2
SCR-HXFL-M6X1X50 10.9 ZODP30DP
7519967
$7,34 Unit Price incl. VAT
3
CAST TUBE SHIM; 31.76 DIA
5633083
$12,59 Unit Price incl. VAT
4
CAST TUBE SPACER; 27.00; DIA
5633122
$16,79 Unit Price incl. VAT
5
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
6
TUBE FRAME ASSEMBLY; REAR
1021007
$1 228,49 Unit Price incl. VAT
7
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
8
ASM-STUD PLATE 5MM
1023672
$23,09 Unit Price incl. VAT
9
SCR-SPCL M6X1.0X16 8.8 ZC
7520514
$7,34 Unit Price incl. VAT
10
SCR-M8X1.25X30 8.8 TR/TX ZOD
7518953
$3,14 Unit Price incl. VAT
11
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
12
BRACE TUBE; LEFT; BLACK
5337391329
Not Available
13
RIVET
7661637
$2,09 Unit Price incl. VAT
14
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT
15
WELD-TUBE BRACE RH BLK
1019861329
Not Available
16
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
17
ASM-CHASSIS 144 ORANGE BURST
1023982647
Not Available
17
ASM-CHASSIS 144 BLK
1023982067
Not Available
17
ASM-CHASSIS 144 INDIAN SKY BLU
1023982737
Not Available
17
ASM-CHASSIS 144 NAT
1023982309
Not Available
17
ASM-CHASSIS 144 LIME SQUEEZE
1023982630
Not Available
17
ASM-CHASSIS 144 INDY RED
1023982293
Not Available
18
PAD-2.5 X2.5
5814187
$8,39 Unit Price incl. VAT
19
FUEL TANK BRACKET ASSEMBLY; REAR; MT BLK
1021376458
Not Available
20
ASM-TUNNEL 144 ORG BURST
1023582647
Not Available
20
TUNNEL ASSEMBLY
1023582309
Not Available
20
ASM-TUNNEL 144 INDY RED
1023582293
Not Available
20
ASM-TUNNEL 144 INDSKYBLUE
1023582737
Not Available
20
TUNNEL ASSEMBLY; LIME SQUEEZE
1023582630
Not Available
20
TUNNEL ASSEMBLY; MEDIUM GLOSS BLACK
1023582067
Not Available
21
WSHR-FL 5.5X1.0
7556071
$9,44 Unit Price incl. VAT
22
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT

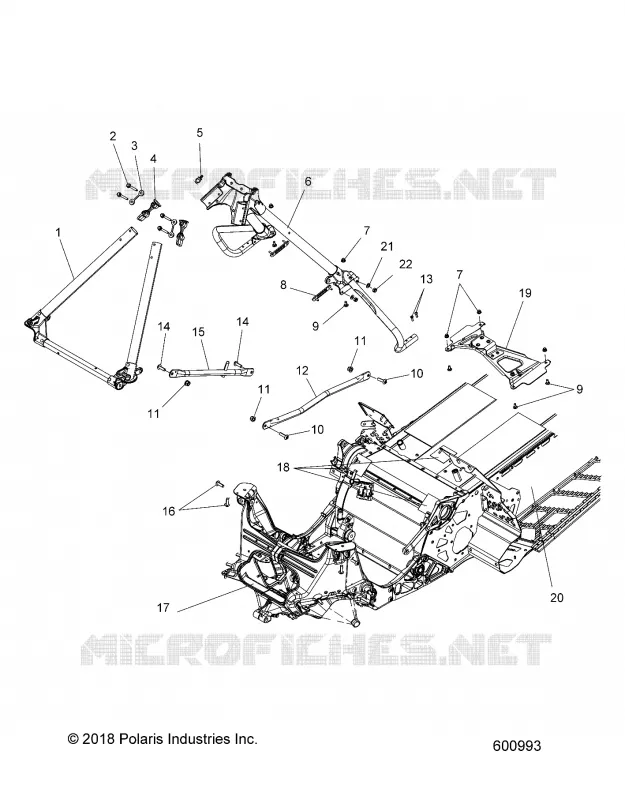

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
