1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
SUSPENSION ASSEMBLY 500 EFI SKS/0930574 (4922962296020A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 500 EFI/0930674 (4922962296019A)
by
FRONT TORQUE ARM 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296021A)
SUSPENSION ASSEMBLY 500 EFI SKS/0930574 (4922962296020A)
1
RAIL ASM LH.
1540741
9999999
Not Available
1
RAIL ASM RH.
1540742
9999999
Not Available
2
SPACER INNER IDLER
5010169
9999999
Not Available
3
WHEEL; IDLER
1594021
9999999
Not Available
4
SPACER IDLER R.INNER
5333086
9999999
Not Available
5
SHAFT REAR IDLER
5020395
9999999
Not Available
6
BUSHING
7556301
$6,29 Unit Price incl. VAT
7
ARM R.PIVOT BLK.
1540721067
Not Available
8
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
9
ADJUSTER BOLT
7515455
9999999
Not Available
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
9999999
Not Available
13
WHEEL IDLER OUTER RED
1594039
9999999
Not Available
14
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
15
WASHER FLAT
7555732
9999999
Not Available
16
RIVET
7621501
$4,19 Unit Price incl. VAT
17
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
20
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
21
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
22
BOLT
7512538
9999999
Not Available
23
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
24
BOLT
7512404
$7,34 Unit Price incl. VAT
25
SPACER
5630399
$20,99 Unit Price incl. VAT
26
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
27
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
28
RIVET
7621476
$2,09 Unit Price incl. VAT
29
REINF.; BUMPER
5222629
9999999
Not Available
30
SCREW
7512227
$6,29 Unit Price incl. VAT
31
SLIDER BLK.
5521296
9999999
Not Available
32
COVER RAIL TIP
5431421
9999999
Not Available
33
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
34
SHAFT-PIVOT ARM
5020415
9999999
Not Available
35
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
36
BUMPER; RAIL
5810554
9999999
Not Available
37
SPACER OUTER
5332784
9999999
Not Available
38
SHAFT R.SHOCK BRKT.
5020649
9999999
Not Available
39
WASHER
7555804
$7,34 Unit Price incl. VAT
40
SPACER
5332786
$13,64 Unit Price incl. VAT
41
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
42
BOLT
7512659
9999999
Not Available
43
SCREW
7515415
9999999
Not Available
44
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
45
MT. R.SHOCK BLK.
1011904067
Not Available
46
TRACK MOLDED 133
5410727
Not Available
47
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
48
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
49
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT

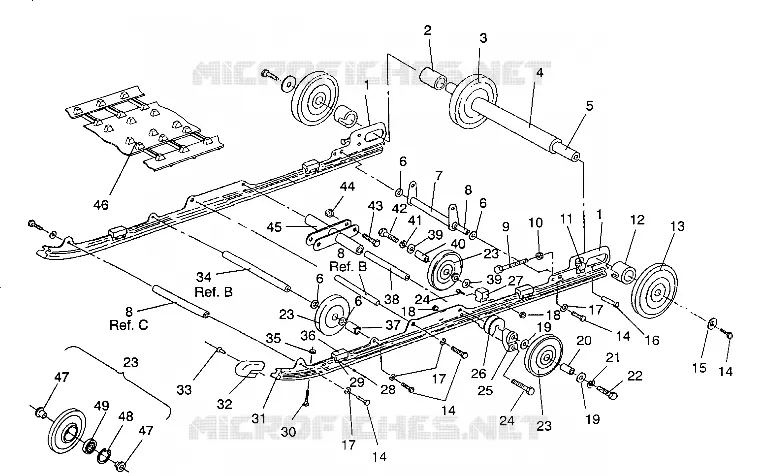

Find the detailed SUSPENSION ASSEMBLY 500 EFI SKS/0930574 (4922962296020A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
