1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
FRONT TORQUE ARM 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296021A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 500 EFI SKS/0930574 (4922962296020A)
by
EXHAUST SYSTEM 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296026A)
FRONT TORQUE ARM 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296021A)
1
SPACER OUTER
5332784
9999999
Not Available
2
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
3
BUSHING
7556301
$6,29 Unit Price incl. VAT
4
ARM F.TORQUE BLK.
1540722067
Not Available
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
BOLT
7515438
$9,44 Unit Price incl. VAT
7
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
8
SCREW
7515415
9999999
Not Available
9
BOLT(10)
7515432
9999999
Not Available
10
SHAFT MOUNTING
5010149
9999999
Not Available
11
SHOCK CTR.SUSP.
7041281
9999999
Not Available
12
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
13
SPRING-SHOCK SUSP
7041140
Not Available
13
SPRING-SHOCK
7041127
9999999
Not Available
14
SPRING SHIELD
5430671
9999999
Not Available
15
BUSHING SUSPENSION
5010212
Not Available
16
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
17
WASHER
7555716
$3,14 Unit Price incl. VAT
18
STRAP LIMITER
5410733
9999999
Not Available
19
BOLT
7515307
$7,34 Unit Price incl. VAT

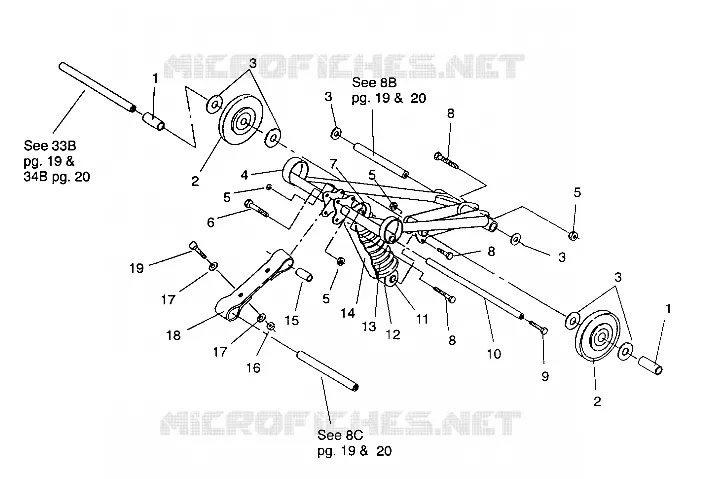

Find the detailed FRONT TORQUE ARM 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
