1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
EXHAUST SYSTEM 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296026A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296021A)
by
OIL TANK AIR BOX 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296027A)
EXHAUST SYSTEM 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296026A)
1
MUFFLER Substituted by 1260571-029
1260571
Not Available
2
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
3
NUT
3080285
9999999
Not Available
4
LOCK WASHER
3080530
9999999
Not Available
5
MANIFOLD
1260501029
Not Available
6
GASKET EXHAUST
3083770
9999999
Not Available
7
SPRING
7042029
$10,49 Unit Price incl. VAT
8
POP RIVET
7621402
$2,09 Unit Price incl. VAT
9
BRKTREAR MUFFLER
5222153067
Not Available
10
WASHER THRUST
7555788
9999999
Not Available
11
VIBRATION DAMPENER
5410467
9999999
Not Available
12
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
13
RIVET
7621418
$2,09 Unit Price incl. VAT
14
BOOT; EXHAUST
5410502
9999999
Not Available
15
HAT; EXHAUST
5431058
9999999
Not Available
16
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
17
DEFLECTOR SNOW
5222615067
Not Available
18
BOLT(10)
7515103
9999999
Not Available
19
SUPPORTMUFFLERBLK.
1011831067
Not Available

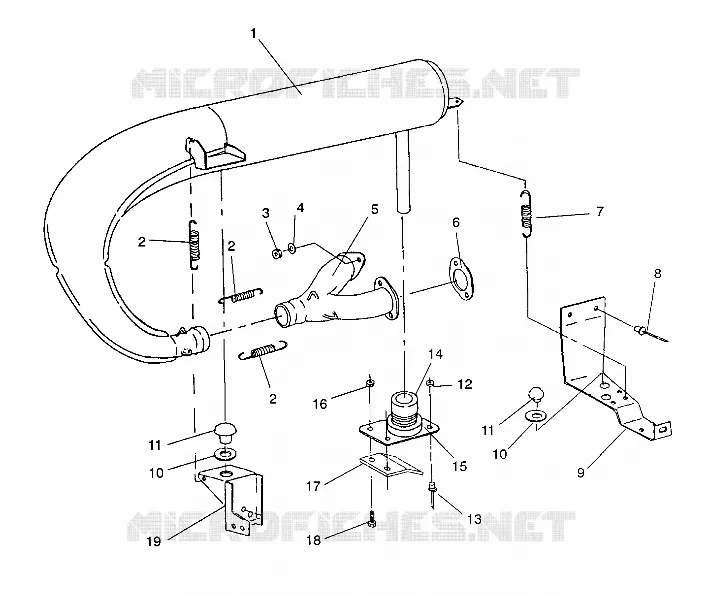

Find the detailed EXHAUST SYSTEM 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296026A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
