1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
STEERING ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296015A)
5
Parts Diagram
Parts Catalog
STEERING
by
REAR TORQUE ARM 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296022A)
STEERING ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296015A)
1
HOOP STEERING
1011513067
Not Available
2
CLIP
7080278
9999999
Not Available
3
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
BOLT-CARRIAGE
7512262
9999999
Not Available
6
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
6
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
7
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
7
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
8
ROD TIE BLACK
5332713067
Not Available
8
TIEROD
5020636067
Not Available
9
PLATELHBOOTSEAL
5210959
5210959-067
Not Available
10
RIVET(10)
7621301
9999999
Not Available
11
BOOT LH
5410388
9999999
Not Available
12
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
13
BOLT
7512404
$7,34 Unit Price incl. VAT
14
BLOCK STEERING
5630375
Not Available
15
BOLT
7512658
9999999
Not Available
16
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
17
BUSHING
3563907
$7,34 Unit Price incl. VAT
18
PLATE RH BOOT SEAL
5210904
9999999
Not Available
19
POP RIVET
7621303
9999999
Not Available
20
BOOT-TIE ROD
5410328
9999999
Not Available
21
NUT LOCK
7542403
9999999
Not Available
22
STRG.ARM CTR BLK.
1822040067
Not Available
22
ARM STEERING CTR BLK.
1822093067
Not Available
23
BUSHING-SPACER
5010161
9999999
Not Available
24
WASHER
7555721
$2,09 Unit Price incl. VAT
25
NUT
7542712
$17,84 Unit Price incl. VAT
26
ROD-DRAG LINK
5332712
9999999
Not Available
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
29
BOLT-CARRIAGE
7512263
9999999
Not Available
30
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
31
FITTING-LUBE.
7080220
9999999
Not Available
32
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

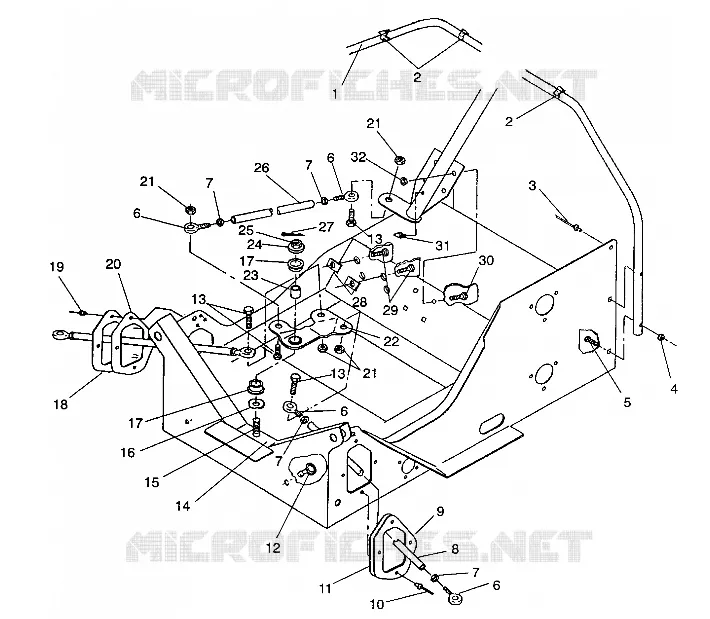

Find the detailed STEERING ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296015A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
