1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 4X4 300 W948130 (4926762676C002)
5
Parts Diagram
Parts Catalog
CONTROLS
by
GEARCASE/BRAKE AND CHAIN COVER MOUNTING 4X4 300 W948130 (4926762676C003)
DRIVEN CLUTCH ASSEMBLY 4X4 300 W948130 (4926762676C002)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
BUSHING
7556406
9999999
Not Available
2
BUSHING
7556401
9999999
Not Available
3
BELT-DRIVE(5)
3211048
3211077
$107,93 Unit Price incl. VAT
4
CLUTCH DRIVEN 3 ANGLE
1322163
1322182
$923,99 Unit Price incl. VAT
5
DOMED WASHER
5220646
$4,19 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
BOLT
7515327
$10,49 Unit Price incl. VAT
8
WASHER 1.5 X 2.0 X .020
7555898
$2,09 Unit Price incl. VAT
9
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
10
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
11
BUSHING MOVEABLE 1 IN
3576511
$52,49 Unit Price incl. VAT
12
CLUTCH SPRING; RED
7041198
$104,99 Unit Price incl. VAT
13
RAMP STATIONARY
5630321
5145721
Not Available
14
RETAINING RING
7714401
9999999
Not Available
15
BOLT (10)
7511854
$2,09 Unit Price incl. VAT
16
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT

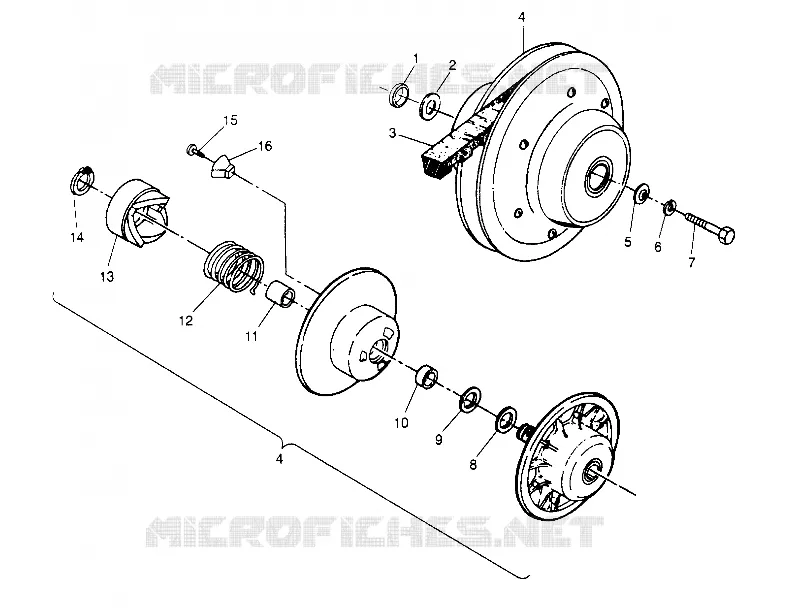

Find the detailed DRIVEN CLUTCH ASSEMBLY 4X4 300 W948130 (4926762676C002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
