1
Engine displacement
autre
2
Year
1994
3
Trim
EURO TRAIL DELUXE - E940262
4
Parts Catalog
PISTON CRANKSHAFT TRAIL DELUXE E940262 (49273827380030)
5
Parts Diagram
Parts Catalog
CYLINDER TRAIL DELUXE E940262 (49273827380029)
by
CARBURETOR TRAIL DELUXE E940262 (49273827380031)
PISTON CRANKSHAFT TRAIL DELUXE E940262 (49273827380030)
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
PISTON RING .010 IN
3083678
9999999
Not Available
2
PISTON RING STANDARD
3083546
9999999
Not Available
2
PISTON RING .020 IN/.5 MM
3083717
9999999
Not Available
3
SET PISTON .020 /.50MM O/S
3083842
9999999
Not Available
3
PISTON ASM.
3083841
9999999
Not Available
3
SET PISTON .010 /.25MM O/S
3084600
9999999
Not Available
4
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
CONNECTING ROD
3083252
9999999
Not Available
7
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
8
BEARING LARGE END
3084274
9999999
Not Available
9
PIN; CRANK
3083233
9999999
Not Available
10
PIN CRANK 2
3083456
5141629
$57,74 Unit Price incl. VAT
11
BALL BEARING
3084601
9999999
Not Available
12
SPACER CRANKSHAFT
3080447
9999999
Not Available
13
BEARING BALL
3084587
9999999
Not Available
14
CRANKSHAFT #3 Substituted by 3084357
3083364
Not Available
15
CRANKSHAFT #1
3083362
Not Available
16
KEY
3081447
9999999
Not Available
17
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
CRANKSHAFT CTR. (Incl. 5-6)
3084370
Not Available
20
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
21
DRIVEGEAR OILPUMP
3083780
9999999
Not Available
22
CRANKSHAFT ASM.
3084369
9999999
Not Available

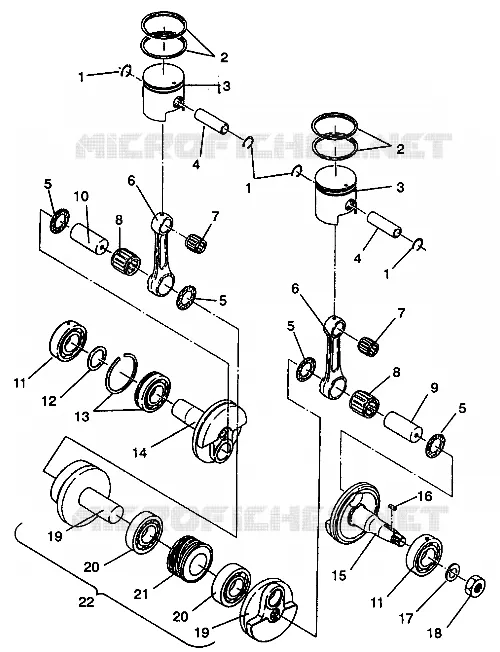

Find the detailed PISTON CRANKSHAFT TRAIL DELUXE E940262 (49273827380030) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
