1
Engine displacement
autre
2
Year
1994
3
Trim
EURO TRAIL DELUXE - E940262
4
Parts Catalog
STARTING MOTOR ASSEMBLY TRAIL DELUXE E940262 (49273827380036)
5
Parts Diagram
Parts Catalog
CARBURETOR TRAIL DELUXE E940262 (49273827380031)
by

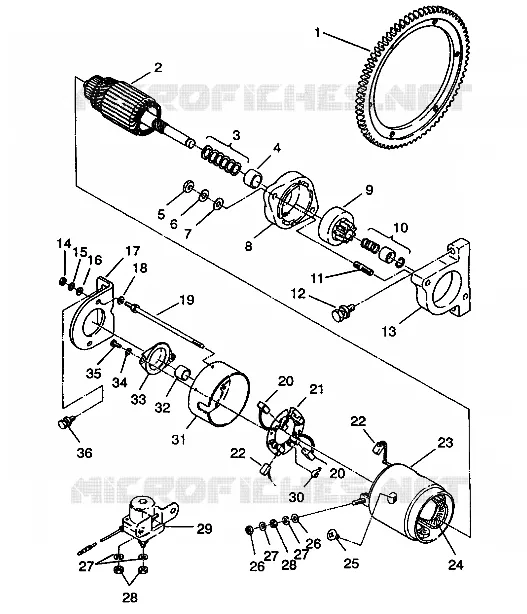

STARTING MOTOR ASSEMBLY TRAIL DELUXE E940262 (49273827380036)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
26
27
27
27
28
28
29
30
31
32
33
34
35
36
1
GEAR RING (Twin ES)
3083075
Not Available
2
ARMATURE ASM.
3084115
Not Available
3
KIT-WASHER (Twin ES)
3083191
Not Available
4
BUSHING METAL FRONT (Twin ES)
3083206
Not Available
5
NUT
3081086
Not Available
6
LOCK WASHER
3080530
9999999
Not Available
7
WASHER(10)
3080142
9999999
Not Available
8
COVER ASM-FRONT. (Incl. 17) (Twin ES)
3083205
Not Available
9
PINION ASM (Twin ES)
3083201
Not Available
10
STOPPER SET(PINION)
3084116
9999999
Not Available
11
STUD
3083210
9999999
Not Available
12
BOLT&WASHER
3083945
Not Available
13
BRACKET (Twin ES)
3083535
Not Available
14
OIL SEAL
3083045
9999999
Not Available
15
WASHER SPRING(10)
3083133
9999999
Not Available
16
WASHER
3083134
9999999
Not Available
17
BRACKET #1
3083213
9999999
Not Available
18
WASHER
3083357
9999999
Not Available
19
BOLT-THROUGH
3083203
9999999
Not Available
20
BRUSH (-)
3083196
9999999
Not Available
21
HOLDER ASMBRUSH
3083195
9999999
Not Available
22
BRUSH (+)
3083194
9999999
Not Available
23
STARTER MOTOR
3083189
9999999
Not Available
24
COIL-FIELD (Incl. 5 6) (Twin ES)
3083192
Not Available
25
SCREW-POLE CORE SET (Twin ES)
3083193
Not Available
26
WASHER(10)
3080078
9999999
Not Available
27
WASHER SPRING(10)
3080077
9999999
Not Available
28
NUT(10)
3082939
9999999
Not Available
29
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
30
SPRING-BRUSH (Twin ES)
3083197
Not Available
31
COVER ASM-REAR (Incl. 11) (Twin ES)
3083198
Not Available
32
COVER-REAR METAL (Twin ES)
3083199
Not Available
33
COVER-DUST (Twin ES)
3083204
Not Available
34
WASHER-SPRING(10) (Twin ES)
3083208
Not Available
35
SCREW (Twin ES)
3083207
Not Available
36
BOLT&WASHER(10)
3083946
Not Available

Find the detailed STARTING MOTOR ASSEMBLY TRAIL DELUXE E940262 (49273827380036) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
